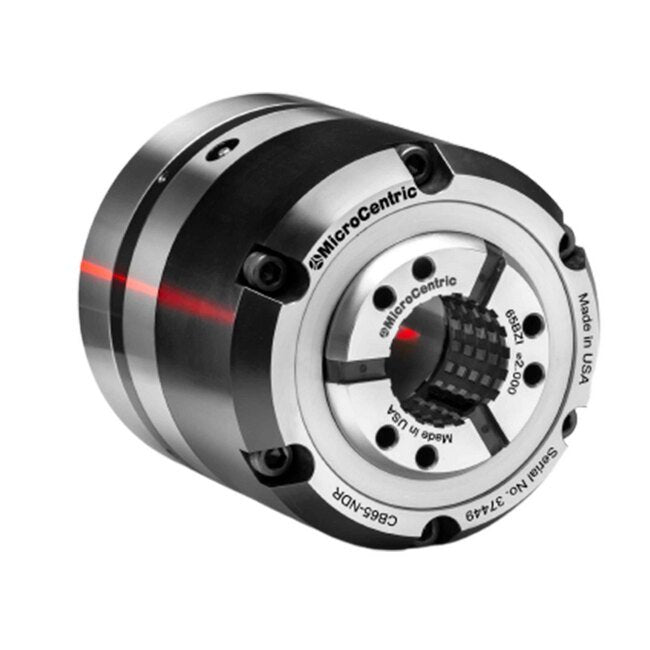

Upgrade to the innovative NDR Pull-to-Close Dead Length Collet Chucks designed for seamless integration with servo stop bar loaders. This patented design eliminates pull back, ensuring the bar stays securely in place during operations. With radial adjusting screws for precision alignment, lubricated-for-life maintenance, and hardened components for long-lasting accuracy, the NDR Collet Chucks offer unmatched reliability and efficiency. Maximize your machining processes with the NDR's superior clamping force, high-speed capability, and effortless maintenance requirements.
Product Specifications
Specifications Accuracy
.0008 in | 0.020 mm

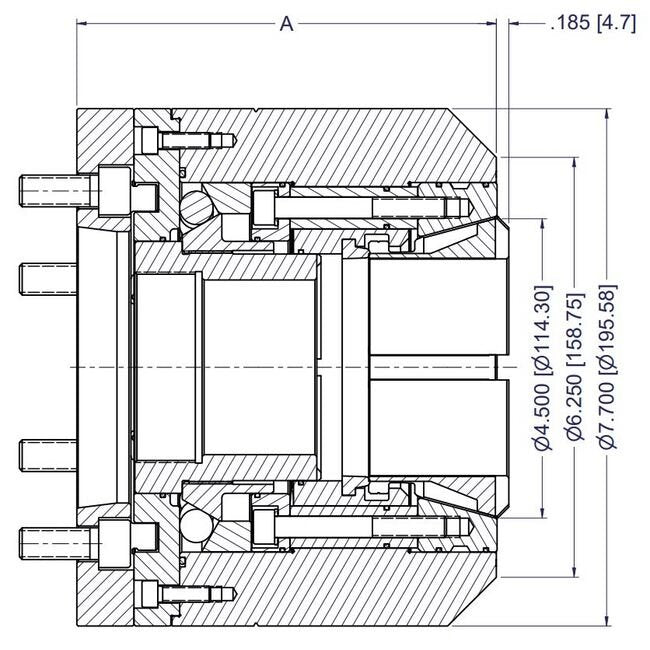

Specifications A Dimension
6.245 in | 158.62 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK80BZI
Specifications Item No
15 080 300
Specifications Linear Chuck Stroke
.480 in | 12.2 mm
Specifications Max Clamping Diameter
3.250 in | 82.5 mm
Specifications Max Clamp Force
25,853 lbs | 115 kN
Specifications Max Draw Tube Thread
M80x2
Specifications Max Speed
5,000 rpm
Specifications Min Clamping Diameter
0.500 in | 12 mm
Specifications Spindle Nose
A2-6
Specifications Weight
57.8 lb | 26.2 kg
Standard Equipment 0
CB-NDR chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with purchase order.
