Negative Pentagon Milling Blank with Hole, Thickness 0.265/0.275 in
Negative Pentagon Milling Blank with Hole, Thickness 0.265/0.275 in
SKU:MIL-f3f4f6
High-precision Negative Pentagon Milling Blank with Hole, ideal for industrial applications. Customizable grade availability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Negative Pentagon Milling Blank with Hole, Thickness 0.265/0.275 in
$49.99
Quantity: 1
Claim Your Seller Account
Negative Pentagon Milling Blank with Hole, Thickness 0.265/0.275 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

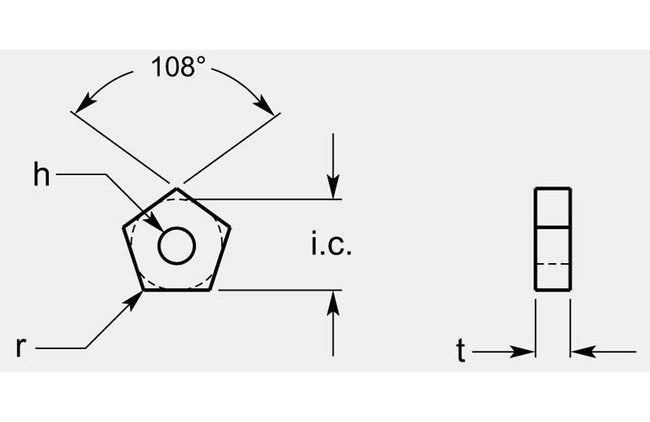

The Negative Pentagon Milling Blank with Hole is a high-quality precision tool designed for industrial milling applications. With a thickness range of 0.265/0.275 inches, an inscribed circle of 0.767/0.777 inches, and a hole diameter of 0.247/0.253 inches, this blank offers exceptional dimensional accuracy. The 108-degree angle and non-existent radius ensure precise machining. Grade availability can be customized to specific requirements, meeting the demanding standards of government and institutional procurement.
Product Specifications
Dimensional Specification Angle A
108 º
Dimensional Specification Hole
0.247 / 0.253 in
Dimensional Specification Inscribed Circle Ic
0.767/0.777 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.265 / 0.275 in
Grade Availability Grade Availability
Available on Request
