Negative Pentagon with Hole Milling Blank, 0.199/0.205 in Thickness
Negative Pentagon with Hole Milling Blank, 0.199/0.205 in Thickness
SKU:MIL-290cfa
Premium Negative Pentagon with Hole milling blank for precision machining. 0.199/0.205 in thickness, ideal for government procurement.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Negative Pentagon with Hole Milling Blank, 0.199/0.205 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Negative Pentagon with Hole Milling Blank, 0.199/0.205 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

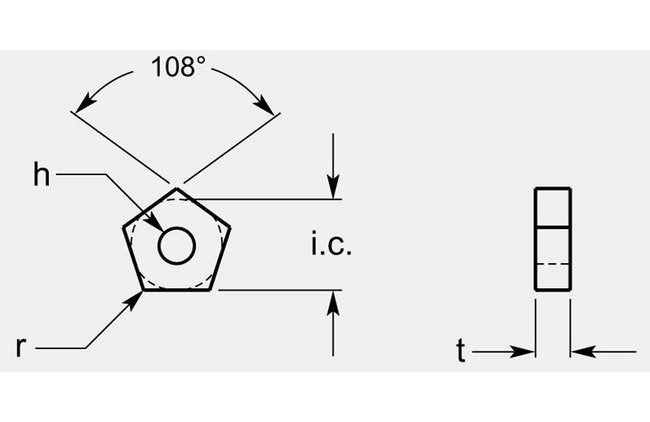

The Negative Pentagon with Hole milling blank offers precise dimensions with a thickness of 0.199/0.205 inches, an inscribed circle of 0.497/0.503 inches, and a 108-degree angle. Ideal for precision machining, it features a hole of 0.200/0.206 inches and can be custom-graded upon request. Meet stringent government procurement standards with this high-quality blank.
Product Specifications
Dimensional Specification Angle A
108 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.199 / 0.205 in
Grade Availability Grade Availability
Available on Request
