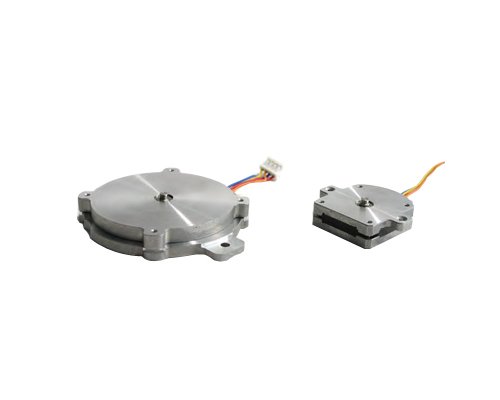

NEMA 11 Flat Type Stepper Motor 0.8A 2-Phase 1.8 Degree
NEMA 11 Flat Type Stepper Motor 0.8A 2-Phase 1.8 Degree
SKU:STE-c302f9
High-performance NEMA 11 Flat Type Stepper Motor with 0.8A current, ideal for precision applications. Meets institutional procurement standards.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
NEMA 11 Flat Type Stepper Motor 0.8A 2-Phase 1.8 Degree
$34.99
Quantity: 1
Claim Your Seller Account
NEMA 11 Flat Type Stepper Motor 0.8A 2-Phase 1.8 Degree
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 11 Flat Type Stepper Motor is a high-performance motor suitable for various applications such as chip mounters, lighting systems, surveillance cameras, and medical devices. With a drive method of bi-polar and a step angle of 1.8 degrees/step, it offers precise control and reliable operation. This motor features a voltage of 24V, current of 0.8A, and holding torque of 14.7mN·m, meeting the stringent requirements of institutional and government procurement standards.
Product Specifications
Customize 0
Custom Designs
Dimensions 0
KV28 KA59 Flat Type Stepper Motors (1.8 Degree/Step) - (KV2810)
Specifications Applicable Housing
PHR - 4
Specifications Applicable Terminal
SPH - 002T - P0.5S
Specifications Application
Chip mounterLighting systemSurveillance cameraMedical devices
Specifications Current
0.8 A | 0.8
Specifications Drive Method
Bi-Polar
Specifications Holding Torque
14.7 mN·m | 150 gf·cm
Specifications Inductance Per Phase
0.8 mH
Specifications Lead Wire
UL1061 AWG26
Specifications Maker
JST
Specifications Motor Frame Size
NEMA 11
Specifications Resistance
3.4 Ω | 3.4
Specifications Step Angle
1.8 º | 1.8 deg./step
Specifications Voltage
24 V
