NEMA 12 Cabinet Cooler System - 550 Btu/hr Non-Hazardous Purge

Name: NEMA 12 Cabinet Cooler System - 550 Btu/hr Non-Hazardous Purge
Brand: Exair LLC
SKU: NEM-cd22a1
Price: 349.99 USD
Availability: OutOfStock

SKU:NEM-cd22a1

Reliable NEMA 12 Cabinet Cooler, 550 Btu/hr capacity with non-hazardous purge - for efficient electronic panel cooling.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

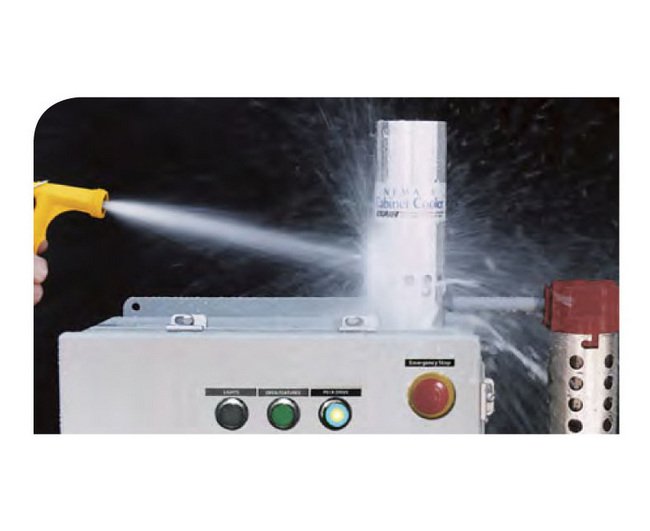

The NEMA 12 (IP54) Cabinet Cooler System offers a reliable and cost-effective solution for cooling and purging electronic control panels in various applications. Featuring a vortex tube design with no moving parts, this Cooler System provides efficient cooling capacity of 550 Btu/hr, maintaining NEMA 12 integrity. With a non-hazardous purge mechanism, it ensures a slight positive pressure within the enclosure, preventing contaminants from entering. Ideal for food service equipment, CNC systems, and more, this system is easy to install, low maintenance, and helps stabilize enclosure temperature and humidity.

Product Specifications

Specifications Capacity

550 Btu/hr | 139 kcal/h

Specifications Note

Non-Hazardous Purge Cabinet Cooler Systems are ideal for dirty areas where contaminants might normally pass through small holes or conduits. Under normal conditions, the NHP Cabinet Cooler Systems provide a slight positive pressure in the enclosure by passing 1 SCFM (28 SLPM) of air through the cooler, when the solenoid valve is in the closed position. When the thermostat detects high temperature, it energizes the solenoid valve to pass full line pressure to the Cabinet Cooler, giving it full cooling capability.

Specifications Sound Level

67 dBA
