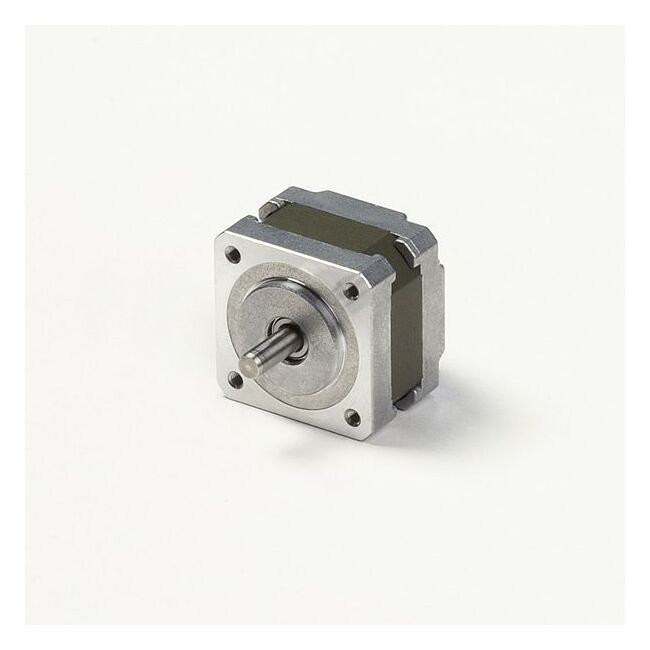

Nema 15 3-Phase Hybrid Stepping Motor (1.2°/Step) - KT Series
Nema 15 3-Phase Hybrid Stepping Motor (1.2°/Step) - KT Series
SKU:STE-1ef84d
High torque, low vibration Nema 15 3-phase stepping motor from the KT Series for precise industrial applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Nema 15 3-Phase Hybrid Stepping Motor (1.2°/Step) - KT Series
$39.99
Quantity: 1
Claim Your Seller Account
Nema 15 3-Phase Hybrid Stepping Motor (1.2°/Step) - KT Series
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nema 15 3-Phase Hybrid Stepping Motor from the KT Series offers superior performance with its simplified drive circuit using star winding connection. Designed for enhanced torque at low speeds, this motor features ultra-low vibration and noise levels achieved through micro-step drivers. With step angle options of 1/1, 1/2, 1/4, or 1/8, this motor ensures precision and efficiency, making it ideal for various industrial applications.
Product Specifications
Additional Information 0
a2047.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT35FM1 VIBRATION.jpg | KT35FM1-552-.jpg | KT60K.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
0.3 A
Specifications Detent Torque
1.4 oz·in | 9.8 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
8.3 oz·in | 59 mN·m
Specifications Inductance2 Phase
26.0 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 15
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
8 g·cm² | 0.044 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
35 x 28 mm | 1.38 x 1.10 in.
Specifications Step Angle
1.2 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
11.7 V
Specifications Weight
110 g | 0.24 lb
Specifications Winding Resistance2 Phase
39.0 Ω
Torque Curve 0
KT35FM1 ST CURVE.jpg
