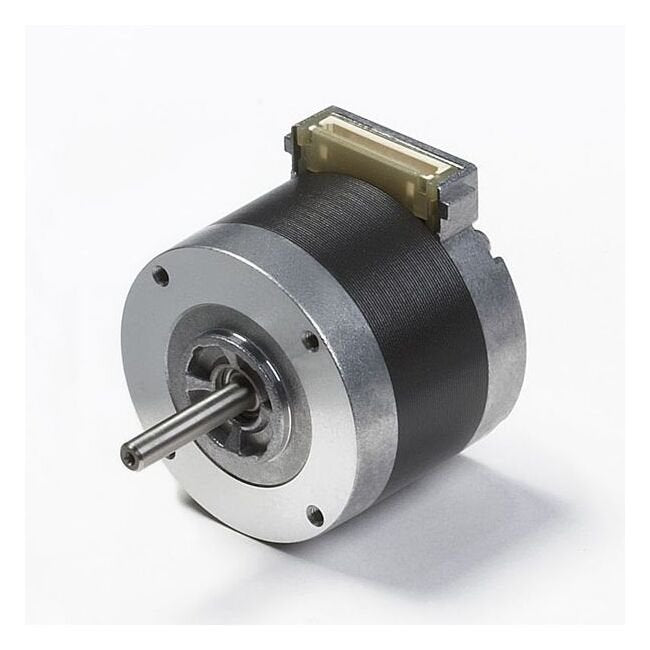

NEMA 17 2 Phase Hybrid Motor - KA50 Series
NEMA 17 2 Phase Hybrid Motor - KA50 Series
SKU:STE-e5658a
High torque, low vibration NEMA 17 2 Phase Hybrid Motor for precise positioning and improved performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
NEMA 17 2 Phase Hybrid Motor - KA50 Series
$59.99
Quantity: 1
Claim Your Seller Account
NEMA 17 2 Phase Hybrid Motor - KA50 Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 KA50 Series 2 Phase Hybrid Motor boasts high torque, low vibration, and silent operation. Designed with the best magnetic balance and utilizing advanced three dimensional magnetic field analysis, this motor ensures precise positioning and enhanced performance. With a step angle of 1.8 degrees/step and a holding torque of 46 oz·in, this motor is ideal for applications requiring accuracy and reliability.
Product Specifications
Additional Information 0
Connection Diagrams | Explanation of Dynamic Torque Curves | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2) | KA50JM2-551.jpg | Lead Wire Assembly
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
2.0 A
Specifications Detent Torque
2.1 oz·in | 15 mN·m
Specifications Holding Torque
46 oz·in | 324 mN·m
Specifications Inductance Per Phase
1.3 mH
Specifications L
1.57 in | 40 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
Hybrid Motor
Specifications Reference Part Number
KA50JM2-501
Specifications Resistance Per Phase
1.23 Ω
Specifications Rotor Inertia
70 B·cm² | 0.4 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
2.46 V
Specifications Weight
300 g | 0.7 lb
Specifications Winding Method
Unipolar
Torque Curve 0
KA50JM2-501 ST CURVE.jpg
