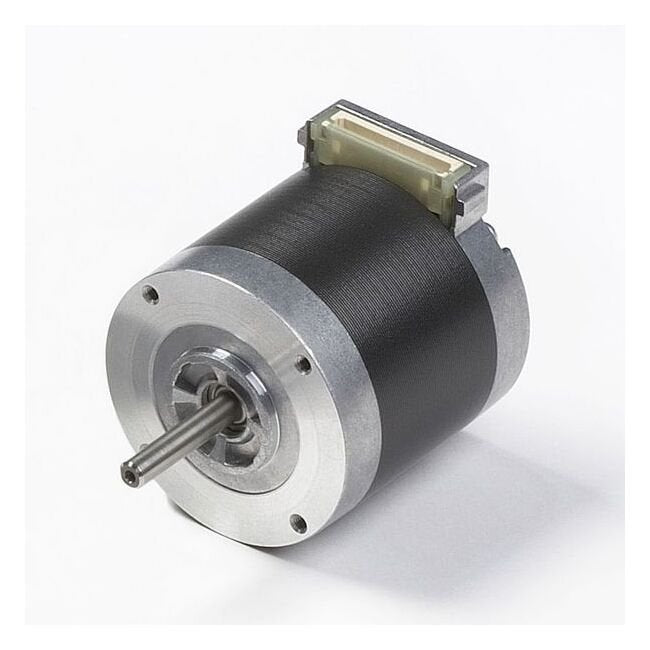

NEMA 17 2 Phase Hybrid Motor - KA50 Series
NEMA 17 2 Phase Hybrid Motor - KA50 Series
SKU:STE-ce51e6
High torque, low vibration NEMA 17 Hybrid Motor - ideal for precision motion control tasks.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
NEMA 17 2 Phase Hybrid Motor - KA50 Series
$69.99
Quantity: 1
Claim Your Seller Account
NEMA 17 2 Phase Hybrid Motor - KA50 Series
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 KA50 Series 2 Phase Hybrid Motor boasts high torque, low vibration, and silent operation, ideal for precision tasks. Utilizing advanced magnetic balance and 3D field analysis, this motor offers exceptional performance. With a step angle of 1.8 degrees/step, holding torque of 74 oz·in, and NEMA 17 frame size, it ensures reliable and accurate motion control in a compact design.
Product Specifications
Additional Information 0
a1210.jpg | Explanation of Dynamic Torque Curves | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2) | Lead Wire Assembly
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
2.0 A
Specifications Detent Torque
2.8 oz·in | 20 mN·m
Specifications Holding Torque
74 oz·in | 520 mN·m
Specifications Inductance Per Phase
2.5 mH
Specifications L
1.97 in | 50 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
Hybrid Motor
Specifications Reference Part Number
KA50KM2-551
Specifications Resistance Per Phase
1.30 Ω
Specifications Rotor Inertia
100 B·cm² | 0.5 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
2.60 V
Specifications Weight
420 g | 0.9 lb
Specifications Winding Method
Bipolar
Torque Curve 0
KA50KM2-551 ST CURVE.jpg
