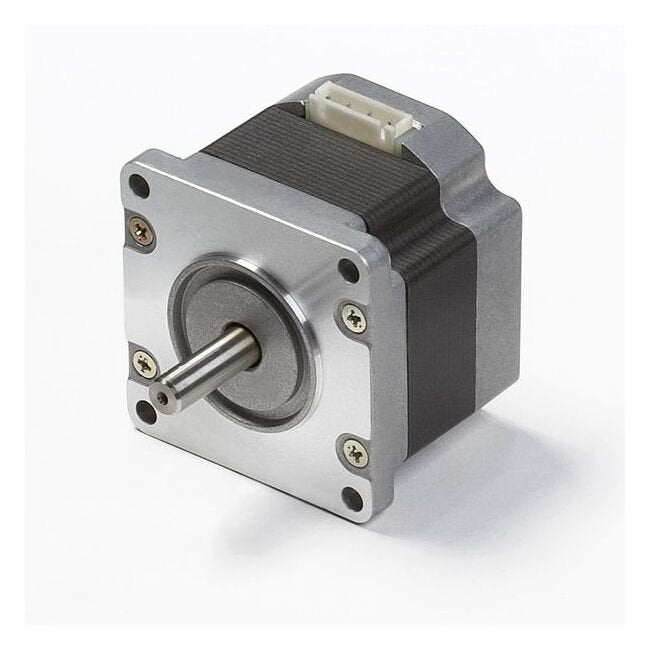

NEMA 17 3-Phase Hybrid Stepping Motor (0.6°/Step) - KT Series
NEMA 17 3-Phase Hybrid Stepping Motor (0.6°/Step) - KT Series
SKU:STE-65a5aa
Enhance motion control precision with the NEMA 17 3-Phase Hybrid Stepping Motor - Ideal for low-speed applications with ultra-low vibration and noise.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
NEMA 17 3-Phase Hybrid Stepping Motor (0.6°/Step) - KT Series
$45.99
Quantity: 1
Claim Your Seller Account
NEMA 17 3-Phase Hybrid Stepping Motor (0.6°/Step) - KT Series
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 3-Phase Hybrid Stepping Motor from the KT Series offers simplified drive circuitry with star winding connection, delivering high torque at low speeds through a micro-step driver. Experience ultra-low vibration and noise while setting motor step angles at 1/1, 1/2, 1/4, or 1/8 intervals. With a NEMA 17 frame size, this motor boasts a holding torque of 6.4 oz·in, making it ideal for precision applications requiring smooth motion control. The motor is designed for efficiency and reliability, meeting stringent industry standards for performance and durability.
Product Specifications
Additional Information 0
a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT42EM06-551-VIBRATION.jpg | KT60K.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
0.9 A
Specifications Detent Torque
1.4 oz·in | 10 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
6.4 oz·in | 45 mN·m
Specifications Inductance2 Phase
3.10 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 17
Specifications No Of Phases
3
Specifications Operating Temperature Range
-10 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
20 g·cm² | 0.11 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
42 x 21 mm | 1.65 x 0.8 in.
Specifications Step Angle
0.6 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
5.3 V
Specifications Weight
140 g | 0.31 lb
Specifications Winding Resistance2 Phase
5.9 Ω
Torque Curve 0
KT42EM06-551 ST CURVE.jpg
