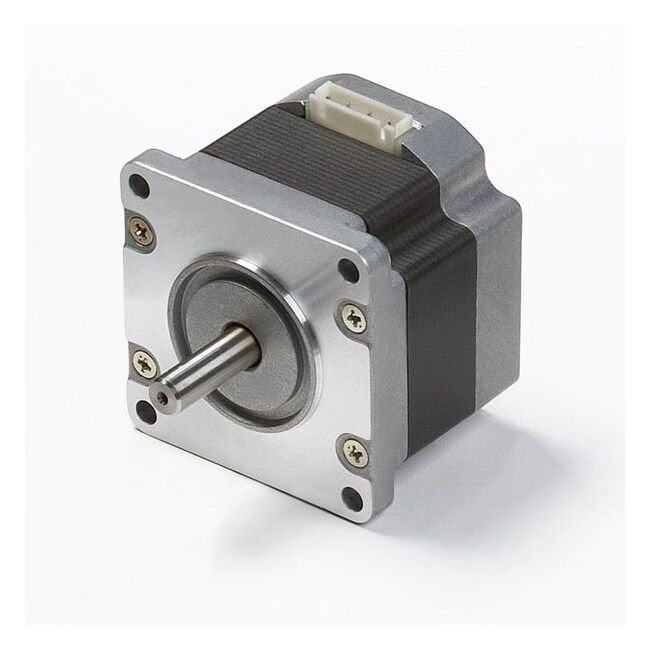

NEMA 17 3 Phase Hybrid Stepping Motor (1.2 Degree/Step) - KT Series
NEMA 17 3 Phase Hybrid Stepping Motor (1.2 Degree/Step) - KT Series
SKU:STE-0d9342
High-performance NEMA 17 3 Phase Hybrid Stepping Motor from KT Series, offers precise motion control with low vibration and noise levels.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
NEMA 17 3 Phase Hybrid Stepping Motor (1.2 Degree/Step) - KT Series
$59.99
Quantity: 1
Claim Your Seller Account
NEMA 17 3 Phase Hybrid Stepping Motor (1.2 Degree/Step) - KT Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 3 Phase Hybrid Stepping Motor from the KT Series is a high-performance stepper motor designed for precision applications. Ideal for both consumer and institutional buyers, this motor offers simplified drive circuitry with star winding connection, delivering high torque at low speeds using a micro-step driver. Experience ultra-low vibration and noise levels thanks to our advanced driver technology. Choose from multiple step angle options (1/1, 1/2, 1/4, or 1/8) to suit your specific needs. With industry-leading specifications and compact design, this motor is a reliable choice for various motion control systems.
Product Specifications
Additional Information 0
a2057.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT42KM1-551 VIBRATION.jpg | KT60K.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
2.4 A
Specifications Detent Torque
2.3 oz·in | 16 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
39.6 oz·in | 280 mN·m
Specifications Inductance2 Phase
1.0 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 17
Specifications No Of Phases
3
Specifications Operating Temperature Range
-10 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
85 g·cm² | 0.46 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
42 x 48 mm | 1.65 x 1.89 in.
Specifications Step Angle
1.2 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
3.60 V
Specifications Weight
360 g | 0.79 lb
Specifications Winding Resistance2 Phase
1.5 Ω
Torque Curve 0
KT42KM1-551 ST CURVE.jpg
