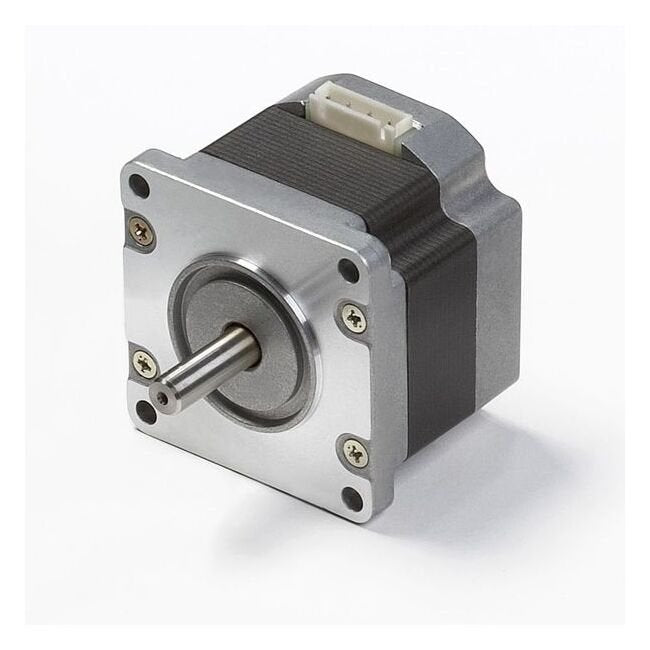

Nema 17 3-Phase Hybrid Stepping Motor - KT Series
Nema 17 3-Phase Hybrid Stepping Motor - KT Series
SKU:STE-a04822
High-performance Nema 17 3-Phase Hybrid Stepping Motor for precise motion control in industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Nema 17 3-Phase Hybrid Stepping Motor - KT Series
$49.99
Quantity: 1
Claim Your Seller Account
Nema 17 3-Phase Hybrid Stepping Motor - KT Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nema 17 3-Phase Hybrid Stepping Motor from the KT Series boasts a simplified drive circuit with star winding connection, offering high torque at low speeds. Equipped with a micro-step driver, it delivers ultra-low vibration and noise levels. Selectable motor step angles of 1/1, 1/2, 1/4, or 1/8 ensure versatility in operation. With a NEMA 17 motor frame size and compliance with JIS Class E insulation standards, this motor is ideal for applications requiring precision and efficiency.
Product Specifications
Additional Information 0
a2061.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT42EM4-551-VIBRATION.jpg | KT60K.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
0.8 A
Specifications Detent Torque
1.3 oz·in | 8.8 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
9.7 oz·in | 70 mN·m
Specifications Inductance2 Phase
5.7 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 17
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
20 g·cm² | 0.11 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
42 x 20 mm | 1.65 x 1.79 in.
Specifications Step Angle
3.75 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
5.28 V
Specifications Weight
140 g | 0.31 lb
Specifications Winding Resistance2 Phase
6.6 Ω
Torque Curve 0
