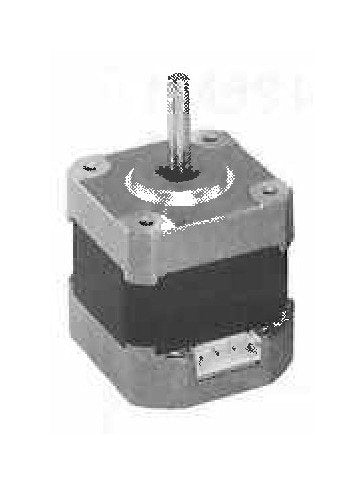

NEMA 17 3-Phase Hybrid Stepping Motor - KT Series
NEMA 17 3-Phase Hybrid Stepping Motor - KT Series
SKU:STE-fd7f37
Experience high torque, low vibration, and precise control with the NEMA 17 3-Phase Hybrid Stepping Motor from the KT Series.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NEMA 17 3-Phase Hybrid Stepping Motor - KT Series
$49.99
Quantity: 1
Claim Your Seller Account
NEMA 17 3-Phase Hybrid Stepping Motor - KT Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 3-Phase Hybrid Stepping Motor from the KT Series offers simplified drive circuitry with star winding connection, delivering high torque at low speeds using a micro-step driver. Achieve ultra-low vibration and noise levels with precise step angle selection options of 1/1, 1/2, 1/4, or 1/8. With a 3.75-degree step angle, holding torque of 25 oz·in, and compliance with Jis Class E (UL Class B) insulation standards, this motor ensures reliable performance in diverse applications.
Product Specifications
Additional Information 0
a2032.jpg | a2061.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT42JM4-552-VIBRATION.jpg | KT60K.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
0.8 A
Specifications Detent Torque
2.8 oz·in | 19.6 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
25 oz·in | 180 mN·m
Specifications Inductance2 Phase
22.0 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 17
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
60 g·cm² | 0.33 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
42 x 40 mm | 1.65 x 1.58 in.
Specifications Step Angle
3.75 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
8.8 V
Specifications Weight
240 g | 0.53 lb
Specifications Winding Resistance2 Phase
11.0 Ω
Torque Curve 0
