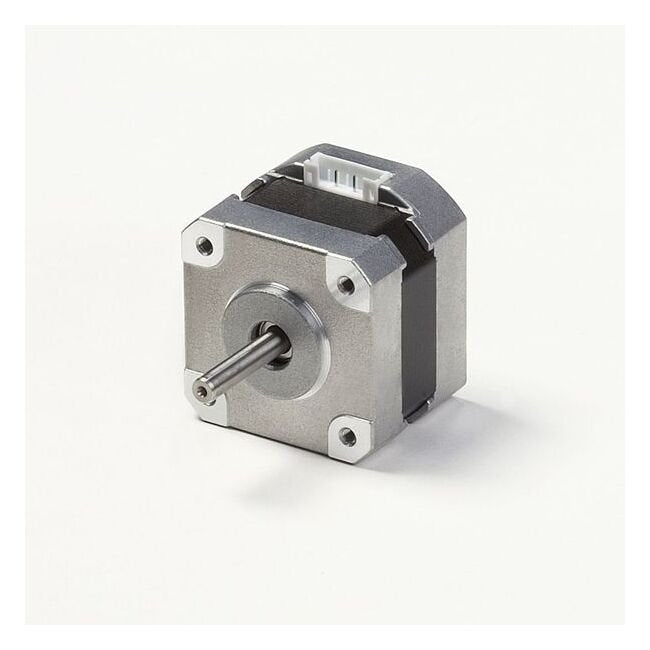

NEMA 17 3-Phase Permanent Magnet Stepper Motor
NEMA 17 3-Phase Permanent Magnet Stepper Motor
SKU:STE-59a023
Experience precision and reliability with the NEMA 17 3-phase permanent magnet stepper motor. Ideal for smooth motion control with high torque and low noise levels.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
NEMA 17 3-Phase Permanent Magnet Stepper Motor
$59.99
Quantity: 1
Claim Your Seller Account
NEMA 17 3-Phase Permanent Magnet Stepper Motor
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 3-phase permanent magnet stepper motor from the KR Series delivers exceptional performance and reliability. Featuring a 3.75-degree step angle and high torque capabilities, this motor is ideal for applications requiring precise motion control. With ultra-low vibration and noise levels, combined with customizable micro-step drivers, this motor ensures smooth operation and unparalleled accuracy. Its compact design, robust construction, and compliance with industry standards make it a top choice for both consumer and institutional buyers.
Product Specifications
Additional Information 0
a2081.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KR42EM4.jpg | KR42HM4-551-.jpg | KR42HM4-551-VIBRATION.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
2.0 A
Specifications Detent Torque
0.8 oz·in | 5.9 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Holding Torque
8.3 oz·in | 58.9 mN·m
Specifications Inductance2 Phase
1.7 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 17
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
31 g·cm² | 0.17 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
42 x 34 mm | 1.65 x 1.34 in.
Specifications Step Angle
3.75 deg./step
Specifications Type
KR Series, 3 phase Permanent Magnet (3.75 Degree/Step)
Specifications Voltage
2.8 V
Specifications Weight
210 g | 0.46 lb
Specifications Winding Resistance2 Phase
1.4 Ω
Torque Curve 0
