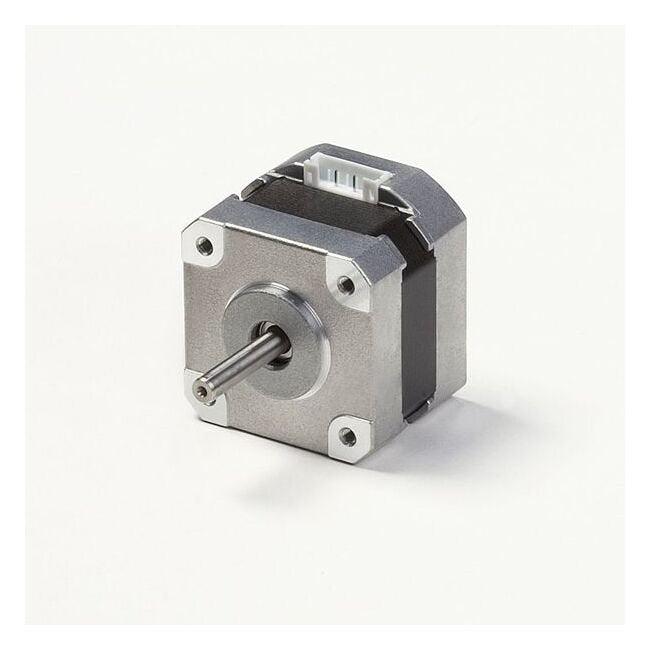

NEMA 17 3-Phase Permanent Magnet Stepper Motor
NEMA 17 3-Phase Permanent Magnet Stepper Motor
SKU:STE-1c1299
High torque, ultra-low vibration NEMA 17 3-phase stepper motor with micro-step driver for precise control.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
NEMA 17 3-Phase Permanent Magnet Stepper Motor
$69.99
Quantity: 1
Claim Your Seller Account
NEMA 17 3-Phase Permanent Magnet Stepper Motor
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 3-phase permanent magnet stepper motor from the KR Series offers exceptional performance for industrial applications. Its simplified drive circuit utilizes star winding connection for ease of use. This motor delivers high torque at low speeds thanks to the micro-step driver, ensuring ultra-low vibration and noise levels. Choose from step angles of 1/1, 1/2, 1/4, or 1/8 to tailor your motor's performance precisely.
Product Specifications
Additional Information 0
a2085.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KR42EM4.jpg | KR42HM4-551-.jpg | KR42KM4-552-VIBRATION.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
1.3 A
Specifications Detent Torque
1.4 oz·in | 9.8 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Holding Torque
16.7 oz·in | 118 mN·m
Specifications Inductance2 Phase
7.7 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 17
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
57 g·cm² | 0.31 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
42 x 48 mm | 1.65 x 1.89 in.
Specifications Step Angle
3.75 deg./step
Specifications Type
KR Series, 3 phase Permanent Magnet (3.75 Degree/Step)
Specifications Voltage
6.5 V
Specifications Weight
350 g | 0.77 lb
Specifications Winding Resistance2 Phase
5.0 Ω
