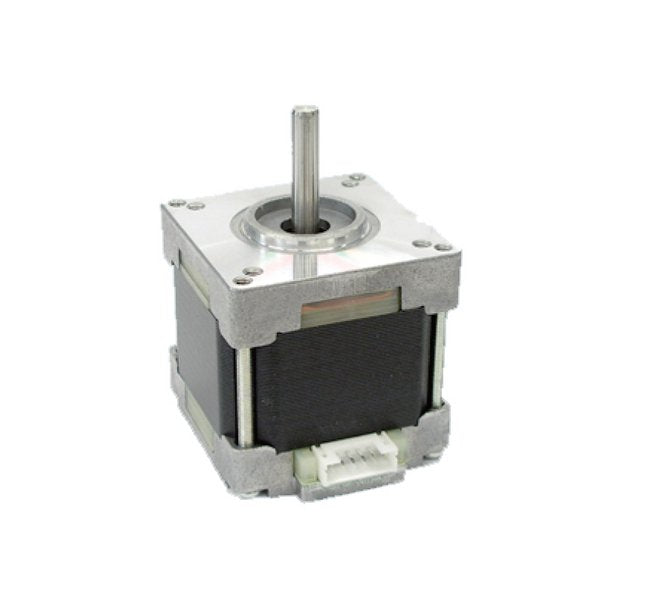

NEMA 17 42mm 2-Phase Stepper Motor - 3.36V KF42 Series
NEMA 17 42mm 2-Phase Stepper Motor - 3.36V KF42 Series
SKU:STE-0ab16b
Compact NEMA 17 Stepper Motor with High Torque. Ideal for Various Applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NEMA 17 42mm 2-Phase Stepper Motor - 3.36V KF42 Series
$49.99
Quantity: 1
Claim Your Seller Account
NEMA 17 42mm 2-Phase Stepper Motor - 3.36V KF42 Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 42mm 2-Phase Stepper Motor from the KF42 Series offers exceptional torque with a compact design. With a voltage of 3.36V and high torque output, this motor provides reliable performance for various applications. Its large rotor and optimized structure ensure efficiency and durability, making it ideal for Office Automation, Factory Automation, Money-handling & Banking equipment, and Medical Devices.
Product Specifications
Additional Information 0
Connection Diagram for KF42 Series 42mm 2-Phase Stepper Motors (1.8 Degree/Step)
Customize 0
Custom Designs
Dimensions 0
KF42 Series 42mm 2-Phase Stepper Motors (1.8 Degree/Step) - 2 | KF42 Series 42mm 2-Phase Stepper Motors (1.8 Degree/Step) - 3
Specifications Ambient Temperature Range
-10 ~ +50 ºC
Specifications Applicable Housing
PHR-6
Specifications Applicable Terminal
SPH-002T-P0.5S
Specifications Application
Office Automation (OA)Factory Automation (FA)Money-handling & Banking equipmentMedical Devices
Specifications Current
1.4 A | 1.4
Specifications Dielectric Strength
500 V AC, 50 Hz for 1 min (at normal temp. & humidity, between lead and case)
Specifications Holding Torque
460 mN·m
Specifications Humidity Range For Ambient Temperature
5 ~ 95 % RH (noncondensing)
Specifications Humidity Range For Storage Temperature
5 ~ 95 % RH (noncondensing)
Specifications Insulation Resistance
100 MO min. at 500 V DC (at normal temp. & humidity, between lead and case)
Specifications Lead Wire
UL3266 AWG26
Specifications Length L
42 in | 1.66 mm
Specifications Maker
JST
Specifications Max Temperature Rise By Resistance Method
80 ºK
Specifications Motor Frame Size
NEMA 17
Specifications Motor Mass
0.33 kg
Specifications Note
The KF42 motor is supplied without a leadwire assembly. This must be ordered as a separate part.
Specifications Option
KV42LBS300
Specifications Position Accuracy
±10 %
Specifications Resistance
2.4 Ω
Specifications Rotor Inertia
145 g·cm²
Specifications Step Angle
1.8 º | 1.8 deg./step
Specifications Storage Temperature Range
-20 ~ +70 ºC
Specifications Type
Single Shaft
Specifications Voltage
3.36 V
Torque Curve 0
Speed - Torque Characteristics (KF4242-EN2B801, KF4242-EN2B802)
