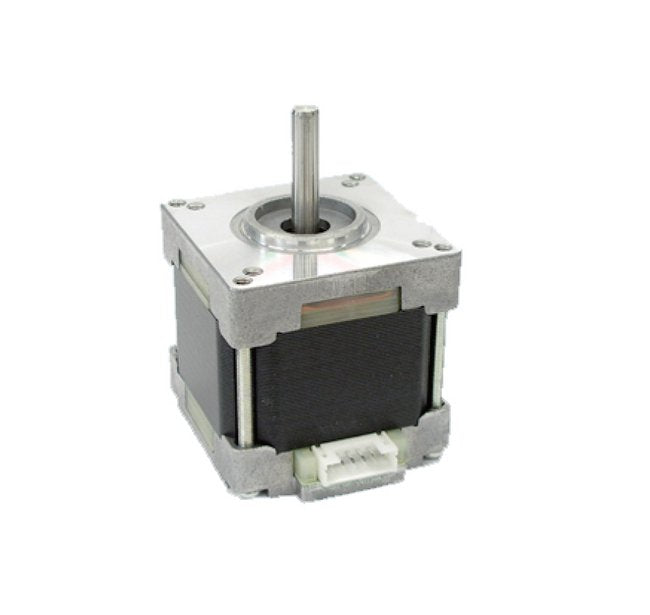

NEMA 17 42mm 2-Phase Stepper Motor (4.85V)
NEMA 17 42mm 2-Phase Stepper Motor (4.85V)
SKU:STE-6a79ae
High-torque NEMA 17 42mm Stepper Motor (4.85V) for precise and efficient motor control in office automation, factory automation, and more.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
NEMA 17 42mm 2-Phase Stepper Motor (4.85V)
$29.99
Quantity: 1
Claim Your Seller Account
NEMA 17 42mm 2-Phase Stepper Motor (4.85V)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 42mm 2-Phase Stepper Motor with 1.8 Degree Step Angle operates at 4.85 volts and a current of 0.85 A, ensuring precise and efficient motor control. Designed with a high torque output of 400 mN·m and a large rotor for enhanced performance. This motor is ideal for various applications in office automation, factory automation, medical devices, and money-handling equipment.
Product Specifications
Additional Information 0
Connection Diagram for KF42 Series 42mm 2-Phase Stepper Motors (1.8 Degree/Step)
Customize 0
Custom Designs
Dimensions 0
KF42 Series 42mm 2-Phase Stepper Motors (1.8 Degree/Step) - 2 | KF42 Series 42mm 2-Phase Stepper Motors (1.8 Degree/Step) - 3
Specifications Ambient Temperature Range
-10 ~ +50 ºC
Specifications Applicable Housing
PHR-6
Specifications Applicable Terminal
SPH-002T-P0.5S
Specifications Application
Office Automation (OA)Factory Automation (FA)Money-handling & Banking equipmentMedical Devices
Specifications Current
0.85 A | 0.85
Specifications Dielectric Strength
500 V AC, 50 Hz for 1 min (at normal temp. & humidity, between lead and case)
Specifications Holding Torque
400 mN·m
Specifications Humidity Range For Ambient Temperature
5 ~ 95 % RH (noncondensing)
Specifications Humidity Range For Storage Temperature
5 ~ 95 % RH (noncondensing)
Specifications Insulation Resistance
100 MO min. at 500 V DC (at normal temp. & humidity, between lead and case)
Specifications Lead Wire
UL3266 AWG26
Specifications Length L
39 in | 1.54 mm
Specifications Maker
JST
Specifications Max Temperature Rise By Resistance Method
80 ºK
Specifications Motor Frame Size
NEMA 17
Specifications Motor Mass
0.29 kg
Specifications Note
The KF42 motor is supplied without a leadwire assembly. This must be ordered as a separate part.
Specifications Option
KV42LBS300
Specifications Position Accuracy
±10 %
Specifications Resistance
5.7 Ω
Specifications Rotor Inertia
100 g·cm²
Specifications Step Angle
1.8 º | 1.8 deg./step
Specifications Storage Temperature Range
-20 ~ +70 ºC
Specifications Type
Single Shaft
Specifications Voltage
4.85 V
Torque Curve 0
Speed - Torque Characteristics (KF4239-EN2B801, KF4239-EN2B802)
