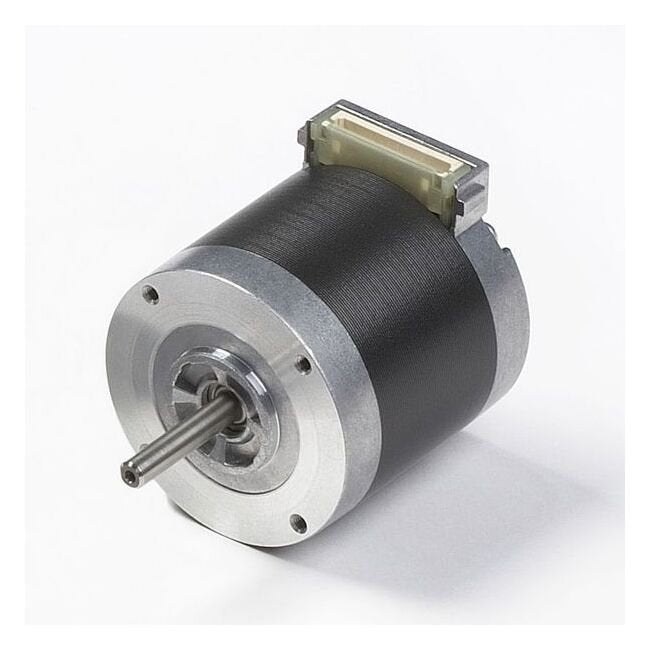

NEMA 17 High Resolution Motor (0.9°/Step)
NEMA 17 High Resolution Motor (0.9°/Step)
SKU:STE-a4fcd8
Experience precision and reliability with our NEMA 17 High Resolution Motor featuring a 0.9° step angle and superior torque output.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
NEMA 17 High Resolution Motor (0.9°/Step)
$79.99
Quantity: 1
Claim Your Seller Account
NEMA 17 High Resolution Motor (0.9°/Step)
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 High Resolution Motor from the KA50 Series offers exceptional performance for precision applications. With a step angle of 0.9 degrees/step and high torque output, this motor ensures smooth operation and accurate positioning. Designed with advanced magnetic balance technology and robust construction, it delivers low vibration and silent operation, making it ideal for demanding industrial environments.
Product Specifications
Additional Information 0
a1243.jpg | a1244.jpg | Explanation of Dynamic Torque Curves | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2) | KA50JM2-551.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
1.0 A
Specifications Detent Torque
1.7 oz·in | 12 mN·m
Specifications Holding Torque
49 oz·in | 347 mN·m
Specifications Inductance Per Phase
9.1 mH
Specifications L
1.57 in | 40 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
High Resolution Motor
Specifications Reference Part Number
KA50JM1-552
Specifications Resistance Per Phase
3.8 Ω
Specifications Rotor Inertia
0.4 oz·in² | 70 g·cm²
Specifications Series
2 Phase Round KA
Specifications Step Angle
0.9 deg./step
Specifications Type
KA50 Series High Resolution Motors (0.9 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
3.80 V
Specifications Weight
300 g | 0.7 lb
Specifications Winding Method
Bipolar
Torque Curve 0
