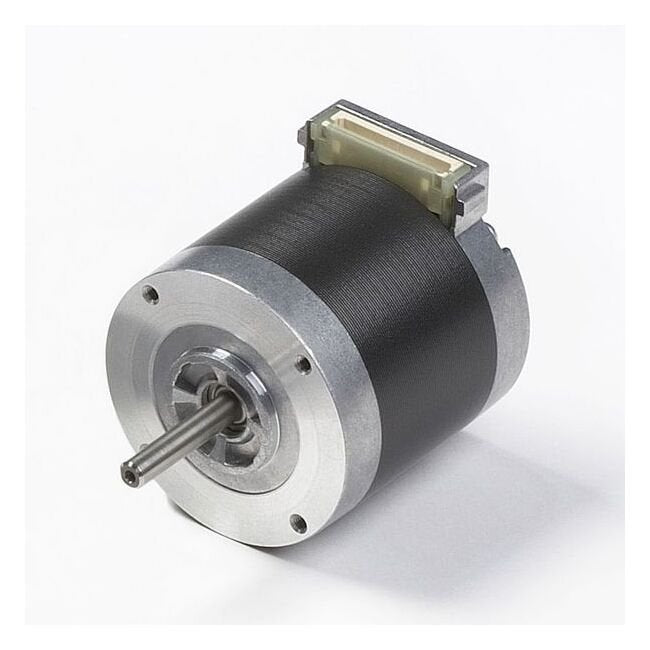

NEMA 17 High Resolution Motor (0.9° Step) - KA50 Series
NEMA 17 High Resolution Motor (0.9° Step) - KA50 Series
SKU:STE-b72524
High torque, low vibration NEMA 17 motor with 0.9° step angle for precise performance in demanding applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
NEMA 17 High Resolution Motor (0.9° Step) - KA50 Series
$89.99
Quantity: 1
Claim Your Seller Account
NEMA 17 High Resolution Motor (0.9° Step) - KA50 Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 High Resolution Motor (0.9° Step) from our KA50 Series is designed to deliver exceptional performance for precision applications. With high torque, low vibration, and silent operation, this motor ensures superior positioning accuracy. Utilizing advanced three-dimensional magnetic field analysis and a robust design, this motor offers the best magnetic balance for optimized performance. Suitable for a range of applications requiring high precision and reliability.
Product Specifications
Additional Information 0
a1244.jpg | Explanation of Dynamic Torque Curves | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2)
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
2.0 A
Specifications Detent Torque
2.5 oz·in | 18 mN·m
Specifications Holding Torque
65 oz·in | 458 mN·m
Specifications Inductance Per Phase
3.10 mH
Specifications L
1.97 in | 50 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
High Resolution Motor
Specifications Reference Part Number
KA50KM1-551
Specifications Resistance Per Phase
1.30 Ω
Specifications Rotor Inertia
0.5 oz·in² | 100 g·cm²
Specifications Series
2 Phase Round KA
Specifications Step Angle
0.9 deg./step
Specifications Type
KA50 Series High Resolution Motors (0.9 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
2.60 V
Specifications Weight
420 g | 0.9 lb
Specifications Winding Method
Bipolar
Torque Curve 0
