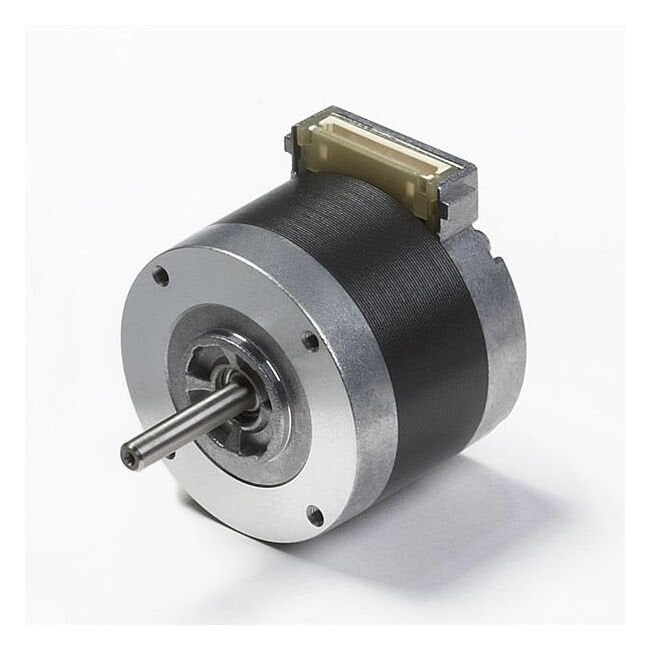

NEMA 17 High Resolution Motor - KA50 Series
NEMA 17 High Resolution Motor - KA50 Series
SKU:STE-cd2f11
Experience precision and reliability with the NEMA 17 High Resolution Motor from the advanced KA50 Series. Ideal for industrial automation and robotics.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
NEMA 17 High Resolution Motor - KA50 Series
$99.99
Quantity: 1
Claim Your Seller Account
NEMA 17 High Resolution Motor - KA50 Series
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 High Resolution Motor from the KA50 Series offers exceptional performance for diverse applications. With a step angle of 0.9 degrees/step, this motor ensures precise motion control with high torque, low vibration, and silent operation. Utilizing advanced magnetic balance and robust design, it guarantees superior position accuracy, making it ideal for industrial automation and robotics. Engineered using cutting-edge magnetic field analysis, this motor delivers optimal efficiency and reliability to meet the stringent demands of institutional and government buyers.
Product Specifications
Additional Information 0
a1241.jpg | a1243.jpg | Explanation of Dynamic Torque Curves | KA Series Motors with D-Cut Single Shaft Motors (Max. 1.8 Degree/Step) (KA50HM2-552) | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2)
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
1.0 A
Specifications Detent Torque
1.4 oz·in | 10 mN·m
Specifications Holding Torque
26 oz·in | 185 mN·m
Specifications Inductance Per Phase
4.4 mH
Specifications L
1.38 in | 35.0 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
High Resolution Motor
Specifications Reference Part Number
KA50HM1-502
Specifications Resistance Per Phase
4.2 Ω
Specifications Rotor Inertia
0.3 oz·in² | 50 g·cm²
Specifications Series
2 Phase Round KA
Specifications Step Angle
0.9 deg./step
Specifications Type
KA50 Series High Resolution Motors (0.9 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
4.20 V
Specifications Weight
230 g | 0.5 lb
Specifications Winding Method
Unipolar
Torque Curve 0
