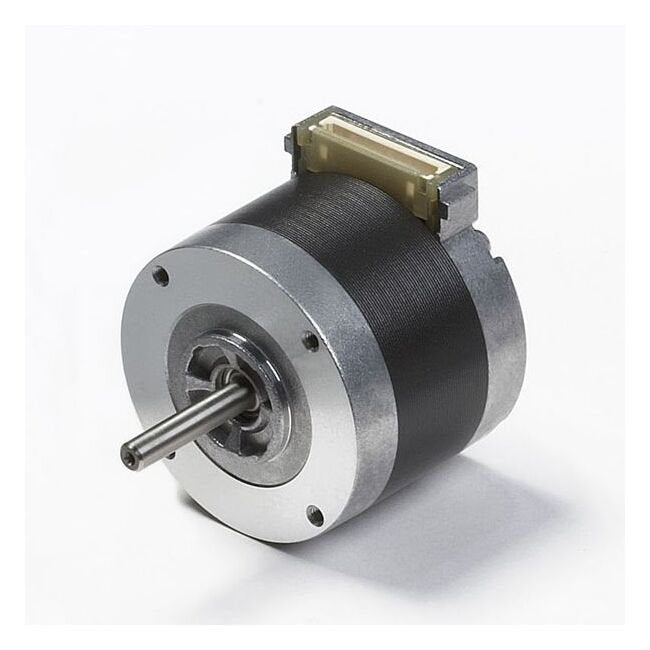

NEMA 17 Hybrid Motor - 2 Phase 1.8° Step Angle
NEMA 17 Hybrid Motor - 2 Phase 1.8° Step Angle
SKU:STE-977132
High-performance NEMA 17 Hybrid Motor with precise 1.8° step angle, low vibration, and silent operation.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
NEMA 17 Hybrid Motor - 2 Phase 1.8° Step Angle
$59.99
Quantity: 1
Claim Your Seller Account
NEMA 17 Hybrid Motor - 2 Phase 1.8° Step Angle
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 KA50 Series 2 Phase Hybrid Motor offers exceptional performance with high torque, low vibration, and silent operation. Its high position accuracy is achieved through advanced magnetic balance technology and robust design. With a step angle of 1.8 degrees/step, voltage per phase of 4.20V, and holding torque of 31 oz·in, this motor is optimized for precision and efficiency in a compact NEMA 17 frame size.
Product Specifications
Additional Information 0
Connection Diagrams | Explanation of Dynamic Torque Curves | KA Series Motors with D-Cut Single Shaft Motors (Max. 1.8 Degree/Step) (KA50HM2-552) | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2) | Lead Wire Assembly
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
1.0 A
Specifications Detent Torque
1.7 oz·in | 12 mN·m
Specifications Holding Torque
31 oz·in | 216 mN·m
Specifications Inductance Per Phase
3.8 mH
Specifications L
1.38 in | 35.0 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
Hybrid Motor
Specifications Reference Part Number
KA50HM2-502
Specifications Resistance Per Phase
4.2 Ω
Specifications Rotor Inertia
50 B·cm² | 0.3 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
4.20 V
Specifications Weight
230 g | 0.5 lb
Specifications Winding Method
Unipolar
Torque Curve 0
KA50HM2-502 ST CURVE.jpg
