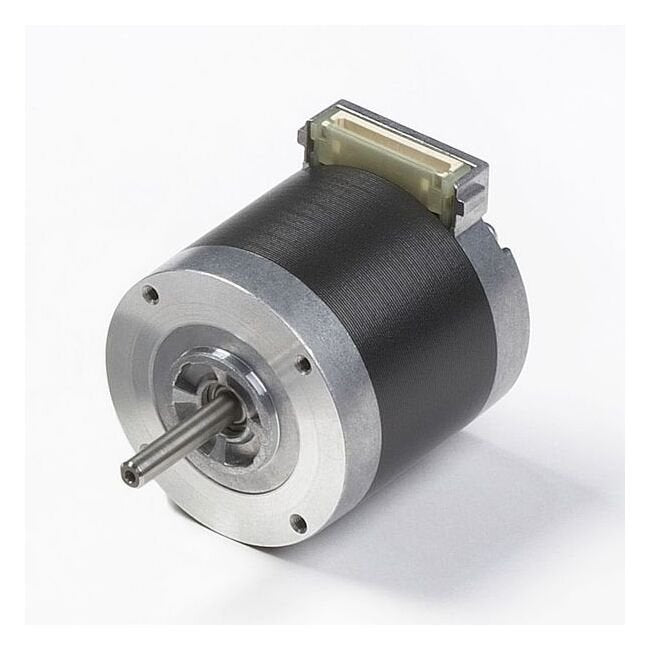

NEMA 17 Hybrid Motor - KA50 Series 2 Phase
NEMA 17 Hybrid Motor - KA50 Series 2 Phase
SKU:STE-ae022b
High-torque NEMA 17 Hybrid Motor from KA50 Series with silent operation, low vibration, and precise positioning.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
NEMA 17 Hybrid Motor - KA50 Series 2 Phase
$89.99
Quantity: 1
Claim Your Seller Account
NEMA 17 Hybrid Motor - KA50 Series 2 Phase
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 Hybrid Motor from the KA50 Series offers exceptional performance with high torque, low vibration, silent operation, and superior position accuracy. Utilizing advanced magnetic balance technology and three-dimensional magnetic field analysis, this motor ensures optimal efficiency and reliability. With a step angle of 1.8 degrees/step, voltage per phase of 3.80 V, and a holding torque of 53 oz·in, it is designed to meet the demanding needs of both consumer and institutional applications.
Product Specifications
Additional Information 0
a1210.jpg | Explanation of Dynamic Torque Curves | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2) | KA50JM2-551.jpg | Lead Wire Assembly
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
1.0 A
Specifications Detent Torque
2.1 oz·in | 15 mN·m
Specifications Holding Torque
53 oz·in | 373 mN·m
Specifications Inductance Per Phase
7.1 mH
Specifications L
1.57 in | 40 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
Hybrid Motor
Specifications Reference Part Number
KA50JM2-552
Specifications Resistance Per Phase
3.8 Ω
Specifications Rotor Inertia
70 B·cm² | 0.4 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
3.80 V
Specifications Weight
300 g | 0.7 lb
Specifications Winding Method
Bipolar
Torque Curve 0
KA50JM2-552 ST CURVE.jpg
