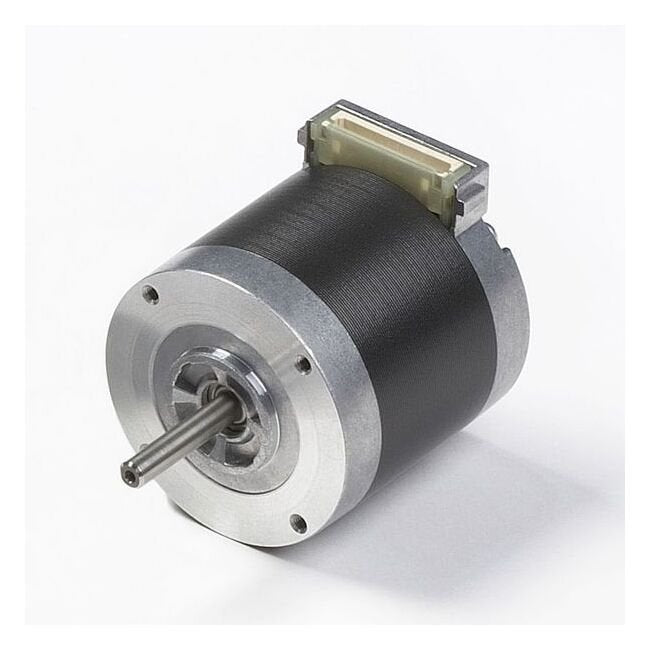

• NEMA 17 Hybrid Motor - KA50 Series 2 Phase - Image 1
1 1
Elinco International JPC, Inc. →

NEMA 17 Hybrid Motor - KA50 Series 2 Phase

NEMA 17 Hybrid Motor - KA50 Series 2 Phase

STE-dd9830

High-torque NEMA 17 Hybrid Motor for precise and reliable performance.

$89.99
$89.99
Sale

Initiate Order

NEMA 17 Hybrid Motor - KA50 Series 2 Phase

NEMA 17 Hybrid Motor - KA50 Series 2 Phase

$89.99

Quantity: 1

Claim Your Seller Account

NEMA 17 Hybrid Motor - KA50 Series 2 Phase

NEMA 17 Hybrid Motor - KA50 Series 2 Phase

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The NEMA 17 KA50 Series 2 Phase Hybrid Motor offers exceptional performance with high torque, low vibration, and silent operation. Utilizing advanced technology for precise positioning, this motor features a robust design and optimal magnetic balance. With a step angle of 1.8 degrees/step and a holding torque of 67 oz·in, it is ideal for applications requiring accuracy and reliability. Experience improved motor performance with this innovative hybrid motor.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information 0
Connection Diagrams | Explanation of Dynamic Torque Curves | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2) | Lead Wire Assembly
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
2.0 A
Specifications Detent Torque
2.8 oz·in | 20 mN·m
Specifications Holding Torque
67 oz·in | 471 mN·m
Specifications Inductance Per Phase
1.8 mH
Specifications L
1.97 in | 50 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
Hybrid Motor
Specifications Reference Part Number
KA50KM2-501
Specifications Resistance Per Phase
1.6 Ω
Specifications Rotor Inertia
100 B·cm² | 0.5 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
3.20 V
Specifications Weight
420 g | 0.9 lb
Specifications Winding Method
Unipolar
Torque Curve 0
KA50KM2-501 ST CURVE.jpg
