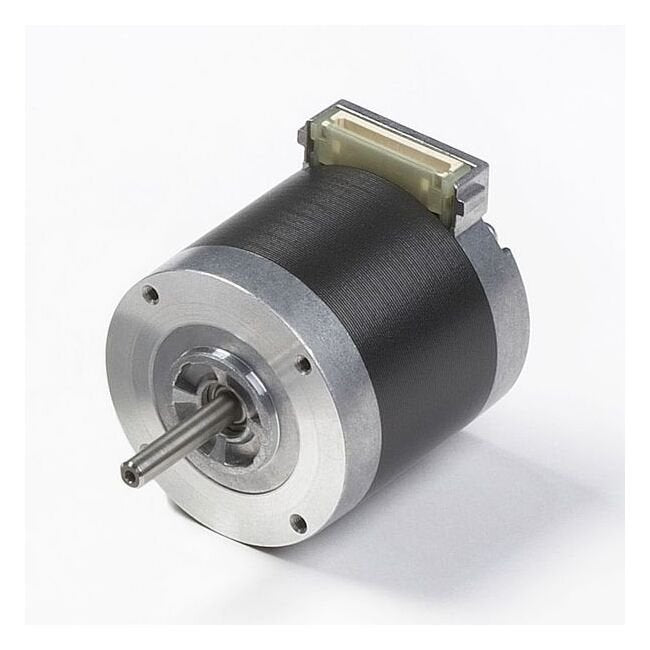

NEMA 17 Hybrid Motor - KA50 Series 2 Phase (1.8 Deg/Step)
NEMA 17 Hybrid Motor - KA50 Series 2 Phase (1.8 Deg/Step)
SKU:STE-c1a444
High torque, low vibration NEMA 17 Hybrid Motor with silent operation and precise positioning. Advanced magnetic balance and robust design for enhanced performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
NEMA 17 Hybrid Motor - KA50 Series 2 Phase (1.8 Deg/Step)
$89.99
Quantity: 1
Claim Your Seller Account
NEMA 17 Hybrid Motor - KA50 Series 2 Phase (1.8 Deg/Step)
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 Hybrid Motor from the KA50 Series 2 Phase offers superior torque, minimal vibration, silent operation, and precise positioning. With advanced 3D magnetic field analysis and a robust design, this motor ensures efficient performance. Ideal for applications requiring high reliability and accuracy.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Connection Diagrams | Explanation of Dynamic Torque Curves | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2) | KA50JM2-551.jpg | Lead Wire Assembly
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
1.0 A
Specifications Detent Torque
2.1 oz·in | 15 mN·m
Specifications Holding Torque
46 oz·in | 324 mN·m
Specifications Inductance Per Phase
5.4 mH
Specifications L
1.57 in | 40 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
Hybrid Motor
Specifications Reference Part Number
KA50JM2-502
Specifications Resistance Per Phase
5.0 Ω
Specifications Rotor Inertia
70 B·cm² | 0.4 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
5.00 V
Specifications Weight
300 g | 0.7 lb
Specifications Winding Method
Unipolar
Torque Curve 0
KA50JM2-502 ST CURVE.jpg
