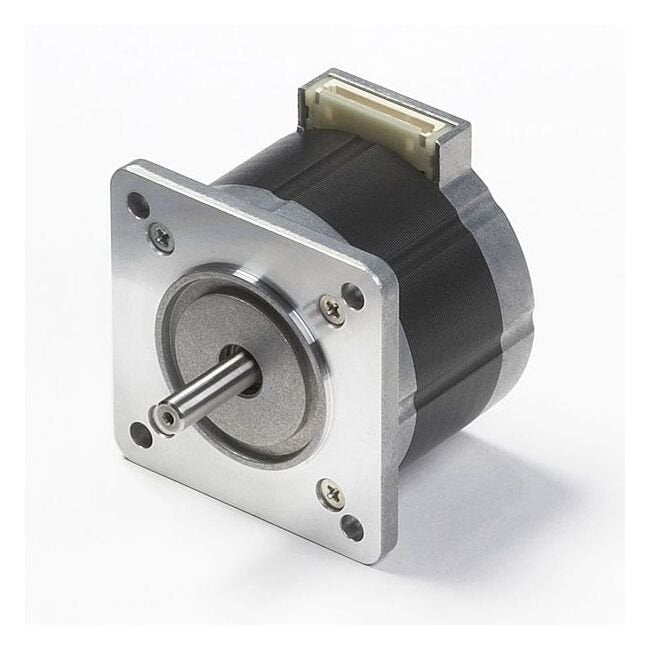

• NEMA 17 Hybrid Motor - KA50 Series 2 Phase (1.8-Degree Step) - Image 1
1 1
Elinco International JPC, Inc. →

NEMA 17 Hybrid Motor - KA50 Series 2 Phase (1.8-Degree Step)

NEMA 17 Hybrid Motor - KA50 Series 2 Phase (1.8-Degree Step)

STE-c0948b

Experience precision and efficiency with the NEMA 17 Hybrid Motor from the KA50 Series.

$79.99
$79.99
Sale

Initiate Order

NEMA 17 Hybrid Motor - KA50 Series 2 Phase (1.8-Degree Step)

NEMA 17 Hybrid Motor - KA50 Series 2 Phase (1.8-Degree Step)

$79.99

Quantity: 1

Claim Your Seller Account

NEMA 17 Hybrid Motor - KA50 Series 2 Phase (1.8-Degree Step)

NEMA 17 Hybrid Motor - KA50 Series 2 Phase (1.8-Degree Step)

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The NEMA 17 Hybrid Motor from the KA50 Series offers cutting-edge design and performance enhancements. With a 1.8-degree step angle and high torque capabilities, this motor ensures precise positioning, low vibration, and silent operation. Leveraging advanced three-dimensional magnetic field analysis, it delivers superior magnetic balance, making it ideal for a wide range of applications requiring high position accuracy. Built with robust design features, this motor is optimized for efficiency and reliability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information 0
a1210.jpg | Explanation of Dynamic Torque Curves | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2) | Lead Wire Assembly
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
1.0 A
Specifications Detent Torque
2.8 oz·in | 20 mN·m
Specifications Holding Torque
74 oz·in | 520 mN·m
Specifications Inductance Per Phase
10 mH
Specifications L
1.97 in | 50 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
Hybrid Motor
Specifications Reference Part Number
KA50KM2-552
Specifications Resistance Per Phase
5.10 Ω
Specifications Rotor Inertia
100 B·cm² | 0.5 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
5.10 V
Specifications Weight
420 g | 0.9 lb
Specifications Winding Method
Bipolar
Torque Curve 0
KA50KM2-552 ST CURVE.jpg
