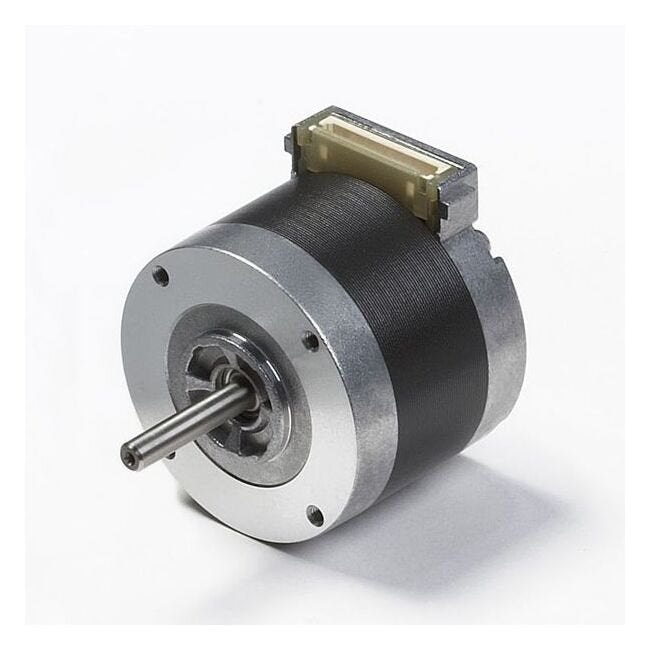

NEMA 17 Hybrid Stepping Motor - KA50 Series 2 Phase
NEMA 17 Hybrid Stepping Motor - KA50 Series 2 Phase
SKU:STE-4c3499
Experience high torque and precision with the NEMA 17 Hybrid Stepping Motor from KA50 Series. Ideal for smooth and accurate operations.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NEMA 17 Hybrid Stepping Motor - KA50 Series 2 Phase
$49.99
Quantity: 1
Claim Your Seller Account
NEMA 17 Hybrid Stepping Motor - KA50 Series 2 Phase
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 Hybrid Stepping Motor from the KA50 Series boasts exceptional torque, low vibration, silent operation, and precise positioning. With cutting-edge magnetic balance and robust design, this motor leverages advanced three-dimensional magnetic field analysis for superior performance.
Product Specifications
Additional Information 0
a1210.jpg | Explanation of Dynamic Torque Curves | KA Series Motors with D-Cut Single Shaft Motors (Max. 1.8 Degree/Step) (KA50HM2-552) | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2) | Lead Wire Assembly
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
1.0 A
Specifications Detent Torque
1.7 oz·in | 12 mN·m
Specifications Holding Torque
33 oz·in | 231 mN·m
Specifications Inductance Per Phase
5.1 mH
Specifications L
1.38 in | 35.0 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
Hybrid Motor
Specifications Reference Part Number
KA50HM2-552
Specifications Resistance Per Phase
3.20 Ω
Specifications Rotor Inertia
50 B·cm² | 0.3 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
3.20 V
Specifications Weight
230 g | 0.5 lb
Specifications Winding Method
Bipolar
Torque Curve 0
KA50HM2-552 ST CURVE.jpg
