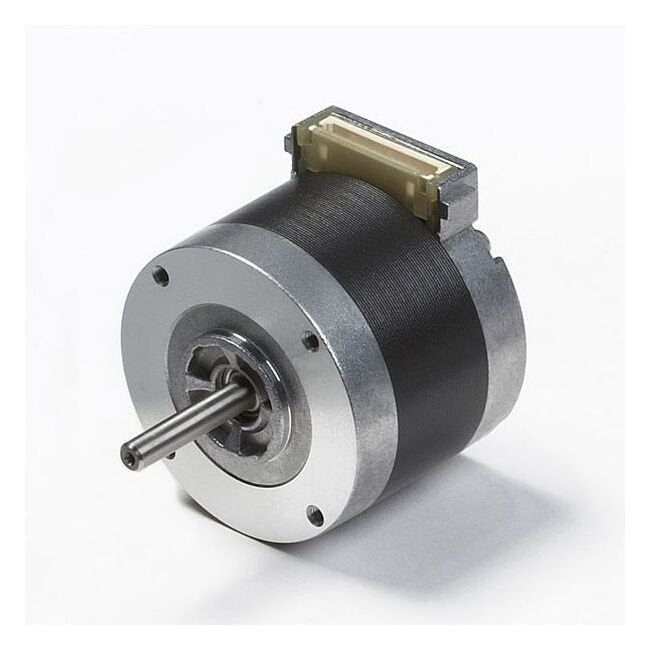

NEMA 17 KA50 Series 2 Phase Hybrid Motor (1.8°/Step)
NEMA 17 KA50 Series 2 Phase Hybrid Motor (1.8°/Step)
SKU:STE-f4be31
High torque, low vibration NEMA 17 hybrid motor with 1.8° step angle for precise and silent operation.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NEMA 17 KA50 Series 2 Phase Hybrid Motor (1.8°/Step)
$49.99
Quantity: 1
Claim Your Seller Account
NEMA 17 KA50 Series 2 Phase Hybrid Motor (1.8°/Step)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 17 KA50 Series 2 Phase Hybrid Motor is a high-performance stepping motor designed for precision and durability. With a step angle of 1.8 degrees/step, it delivers high torque, low vibration, and silent operation. Featuring a robust design with the best magnetic balance, this motor ensures high position accuracy. Utilizing advanced three-dimensional magnetic field analysis technology, it offers improved motor performance for a wide range of applications.
Product Specifications
Additional Information 0
a1210.jpg | Explanation of Dynamic Torque Curves | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2) | KA50JM2-551.jpg | Lead Wire Assembly
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
2.0 A
Specifications Detent Torque
2.1 oz·in | 15 mN·m
Specifications Holding Torque
53 oz·in | 373 mN·m
Specifications Inductance Per Phase
1.9 mH
Specifications L
1.57 in | 40 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
Hybrid Motor
Specifications Reference Part Number
KA50JM2-551
Specifications Resistance Per Phase
0.98 Ω
Specifications Rotor Inertia
70 B·cm² | 0.4 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
1.96 V
Specifications Weight
300 g | 0.7 lb
Specifications Winding Method
Bipolar
Torque Curve 0
KA50JM2-551 ST CURVE.jpg
