NEMA 23 1 Amp/Phase 2-Phase Stepper Motor
NEMA 23 1 Amp/Phase 2-Phase Stepper Motor
SKU:STE-22007d
High-torque NEMA 23 1A/Phase Stepper Motor for precise positioning in various applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NEMA 23 1 Amp/Phase 2-Phase Stepper Motor
$49.99
Quantity: 1
Claim Your Seller Account
NEMA 23 1 Amp/Phase 2-Phase Stepper Motor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

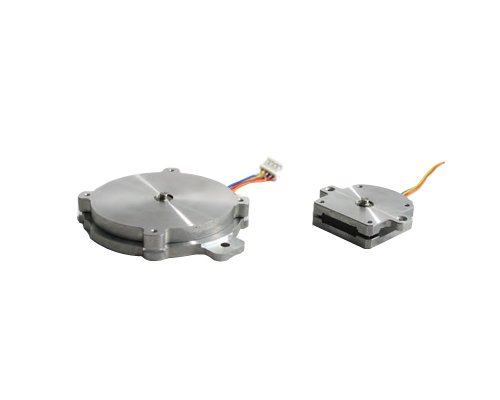

The NEMA 23 1 Ampere per Phase 2-Phase Flat Type Stepper Motor from the KV28 KA59 series offers precise control and high torque for a range of applications, including chip mounting, lighting systems, surveillance cameras, and medical devices. With a step angle of 1.8 degrees/step and a holding torque of 78.5 mN·m, this motor ensures accurate positioning and reliability. Made by JST, it conforms to NEMA standards and is customizable for specific requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Customize 0
Custom Designs
Dimensions 0
KV28 KA59 Flat Type Stepper Motors (1.8 Degree/Step) (KA5910)
Specifications Applicable Housing
PHR - 4
Specifications Applicable Terminal
SPH - 002T - P0.5S
Specifications Application
Chip mounterLighting systemSurveillance cameraMedical devices
Specifications Current
1.0 A | 1.0
Specifications Drive Method
Bi-Polar
Specifications Holding Torque
78.5 mN·m | 800 gf·cm
Specifications Inductance Per Phase
1.8 mH
Specifications Lead Wire
UL1061 AWG26
Specifications Maker
JST
Specifications Motor Frame Size
NEMA 23
Specifications Resistance
3.4 Ω | 3.4
Specifications Step Angle
1.8 º | 1.8 deg./step
Specifications Voltage
24 V
