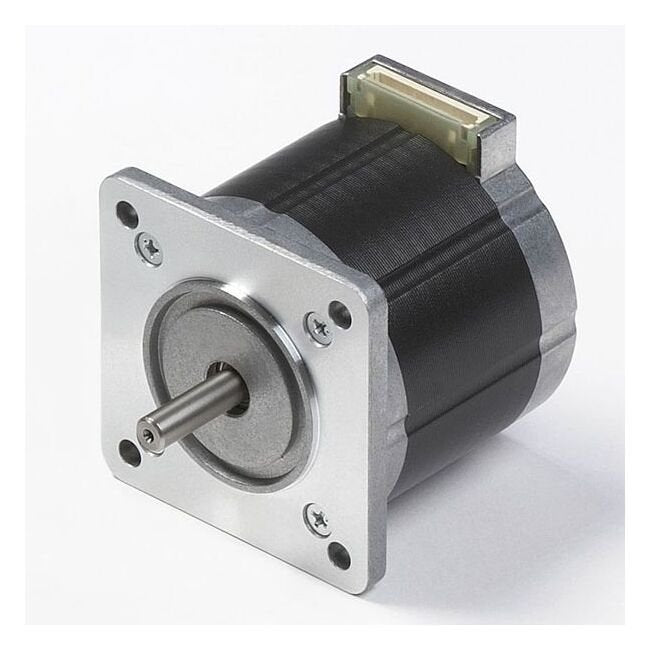

NEMA 23 2 Phase Hybrid Motor - KA60 Series (1.8°/Step)
NEMA 23 2 Phase Hybrid Motor - KA60 Series (1.8°/Step)
SKU:STE-c9d382
High-torque NEMA 23 hybrid motor with 1.8° step angle for precise and silent operation.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
NEMA 23 2 Phase Hybrid Motor - KA60 Series (1.8°/Step)
$129.99
Quantity: 1
Claim Your Seller Account
NEMA 23 2 Phase Hybrid Motor - KA60 Series (1.8°/Step)
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 23 KA60 Series 2 Phase Hybrid Motor offers superior performance with high torque, low vibration, and silent operation. Its precise 1.8° step angle, robust design, and optimized magnetic balance ensure exceptional position accuracy. Utilizing advanced three-dimensional magnetic field analysis, this motor delivers reliable performance for a wide range of applications, making it ideal for both consumer and institutional buyers.
Product Specifications
Additional Information 0
a1225.jpg | a1227.jpg | Explanation of Dynamic Torque Curves | KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 23 (KA60JM2) | KA60KM.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
3.3 A
Specifications Detent Torque
7.1 oz·in | 50 mN·m
Specifications Holding Torque
171 oz·in | 1207 mN·m
Specifications Inductance Per Phase
2.1 mH
Specifications L
2.13 in | 54 mm
Specifications Motor Frame Size
NEMA 23
Specifications Product Type
Stepper Motor
Specifications Reference Part Number
KA60KM2-551
Specifications Resistance Per Phase
0.73 Ω
Specifications Rotor Inertia
270 g·cm² | 1.5 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 23
Specifications Voltage Per Phase
2.41 V
Specifications Weight
700 g | 1.5 lb
Specifications Winding Method
Bipolar
Torque Curve 0
