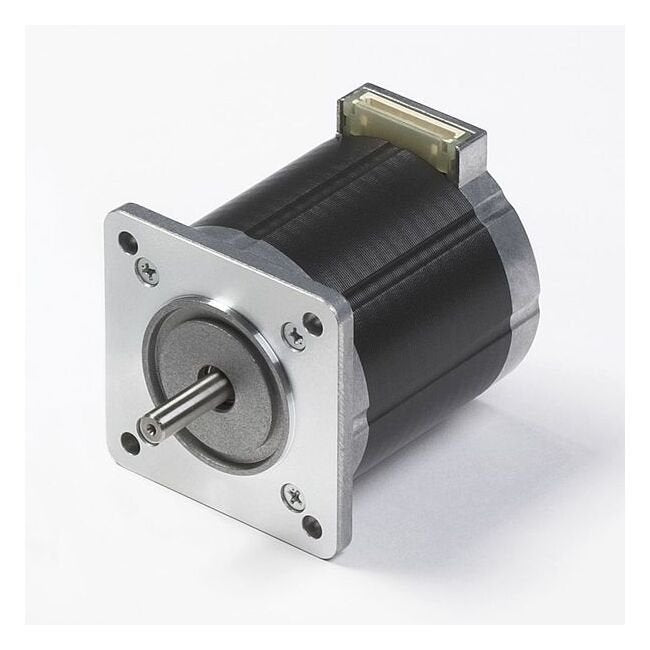

NEMA 23 2 Phase Hybrid Stepper Motor
NEMA 23 2 Phase Hybrid Stepper Motor
SKU:STE-8f491f
High-performing NEMA 23 stepper motor with low vibration, high torque, and precise positioning. Silent operation with robust design and optimal magnetic balance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
NEMA 23 2 Phase Hybrid Stepper Motor
$89.99
Quantity: 1
Claim Your Seller Account
NEMA 23 2 Phase Hybrid Stepper Motor
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 23 2 Phase Hybrid Stepper Motor from the KA60 Series delivers exceptional performance with high torque, low vibration, and precise positioning. Utilizing advanced three-dimensional magnetic field analysis and robust design, this motor ensures silent operation and optimal magnetic balance. With a step angle of 1.8 degrees/step, holding torque of 171 oz·in, and NEMA 23 frame size, it is ideal for applications requiring reliability and accuracy.
Product Specifications
Additional Information 0
a1225.jpg | a1227.jpg | Explanation of Dynamic Torque Curves | KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 23 (KA60JM2) | KA60KM.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
2.2 A
Specifications Detent Torque
7.1 oz·in | 50 mN·m
Specifications Holding Torque
171 oz·in | 1207 mN·m
Specifications Inductance Per Phase
4.5 mH
Specifications L
2.13 in | 54 mm
Specifications Motor Frame Size
NEMA 23
Specifications Product Type
Stepper Motor
Specifications Reference Part Number
KA60KM2-552
Specifications Resistance Per Phase
1.37 Ω
Specifications Rotor Inertia
270 g·cm² | 1.5 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 23
Specifications Voltage Per Phase
3.01 V
Specifications Weight
700 g | 1.5 lb
Specifications Winding Method
Bipolar
Torque Curve 0
