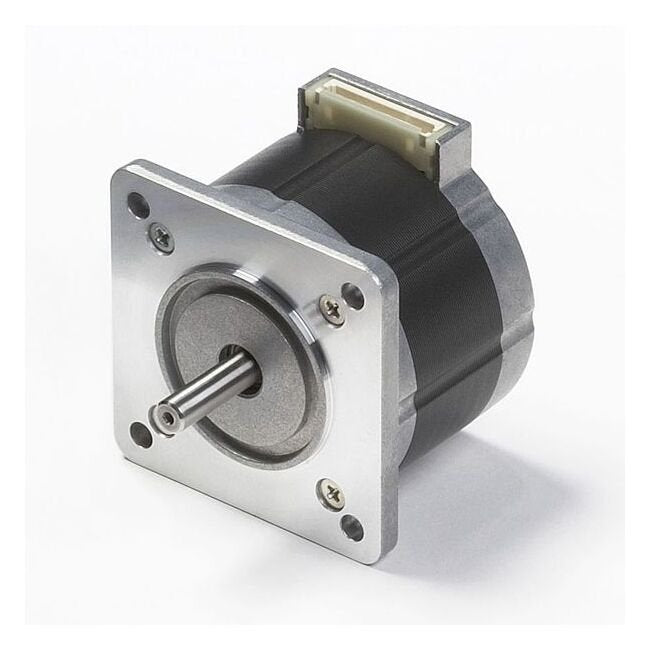

NEMA 23 2-Phase Hybrid Stepping Motor - KA60 Series

NEMA 23 2-Phase Hybrid Stepping Motor - KA60 Series

SKU:STE-004de7

High-torque NEMA 23 stepping motor with 1.8° step angle, low vibration, and silent operation for precision applications.

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

NEMA 23 2-Phase Hybrid Stepping Motor - KA60 Series

NEMA 23 2-Phase Hybrid Stepping Motor - KA60 Series

$89.99

Quantity: 1

Claim Your Seller Account

NEMA 23 2-Phase Hybrid Stepping Motor - KA60 Series

NEMA 23 2-Phase Hybrid Stepping Motor - KA60 Series

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The NEMA 23 KA60 Series 2-Phase Hybrid Motor offers exceptional performance with high torque, low vibration, and silent operation. Featuring a step angle of 1.8 degrees/step, this motor ensures precise positioning accuracy. Utilizing advanced technology for magnetic field analysis and robust design, it provides superior motor performance. With a voltage of 2.05V, current of 3.3A, and holding torque of 114 oz·in, this motor is ideal for applications requiring reliability and efficiency.

Product Specifications

Additional Information 0
a1225.jpg | a1227.jpg | Explanation of Dynamic Torque Curves | KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 23 (KA60JM2)
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
3.3 A
Specifications Detent Torque
5.0 oz·in | 35 mN·m
Specifications Holding Torque
114 oz·in | 805 mN·m
Specifications Inductance Per Phase
1.2 mH
Specifications L
1.73 in | 44 mm
Specifications Motor Frame Size
NEMA 23
Specifications Product Type
Stepper Motor
Specifications Reference Part Number
KA60JM2-551
Specifications Resistance Per Phase
0.62 Ω
Specifications Rotor Inertia
180 g·cm² | 1.0 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 23
Specifications Voltage Per Phase
2.05 V
Specifications Weight
500 g | 1.1 lb
Specifications Winding Method
Bipolar
Torque Curve 0
