Nema 23 2-Phase Hybrid Stepping Motor KH56JM2 Series
Nema 23 2-Phase Hybrid Stepping Motor KH56JM2 Series
SKU:STE-16eca4
Enhanced torque, reduced vibration, and improved efficiency in a NEMA 23 2-phase hybrid stepping motor for industrial precision applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Nema 23 2-Phase Hybrid Stepping Motor KH56JM2 Series
$149.99
Quantity: 1
Claim Your Seller Account
Nema 23 2-Phase Hybrid Stepping Motor KH56JM2 Series
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

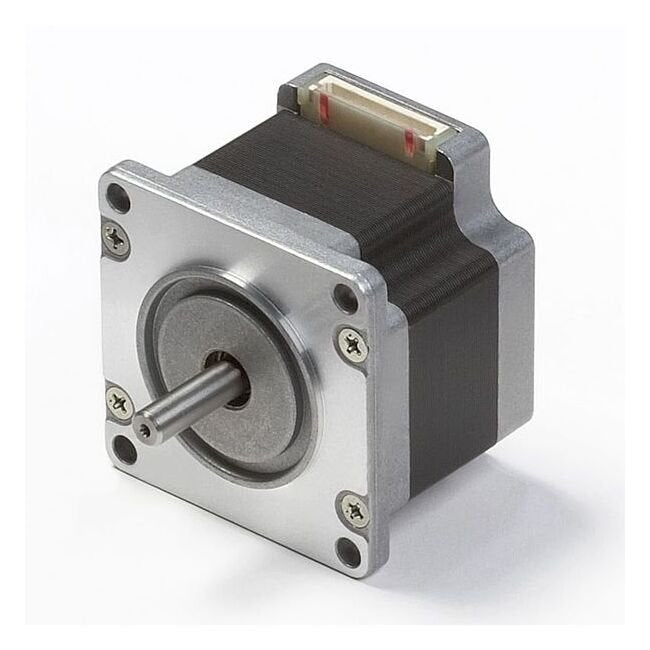

The Nema 23 2-Phase Hybrid Stepping Motor KH56JM2 Series is engineered for optimal performance, delivering stronger torque at higher speeds, reduced vibration by 10%, and enhanced efficiency using high-grade materials. With a double shaft design, NEMA 23 frame size, and a step angle of 1.8 degrees/step, this motor offers precise control and reliability for industrial applications. It provides a holding torque of 187 oz·in, operating in a temperature range of 0 to 50°C, meeting stringent industry standards for quality and performance.
Product Specifications
Additional Information 0
Connection Diagrams | Driver Selection Guide | Explanation of Dynamic Torque Curves | Motor Selection Guide | System Configuration
Customize 0
Custom Designs
Dimensions 0
Connection Cable to Motor-Unipolar | Dimensions
Specifications Allowable Temperature Range
70 ºK
Specifications Current Per Phase
1.0 A
Specifications Detent Torque
9.8 oz·in | 69 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Unipolar
Specifications Holding Torque
187 oz·in | 1324 mN·m
Specifications Inductance Per Phase
21.6 mH
Specifications Insulation Class
JIS Class E (120ºC/248ºF) | UL Value : Class B (130ºC/266ºF)
Specifications Insulation Resistance
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
2
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Hybrid Stepping Motor
Specifications Rotor Inertia
1.47 oz·in² | 269 g·cm²
Specifications Series
2 Phase Square KH
Specifications Shaft Specification
Double Shaft
Specifications Step Angle
1.8 deg./step
Specifications Voltage
9.9 V
Specifications Weight
1.0 g | 2.2 lb
Specifications Winding Resistance Per Phase
9.9 Ω
Torque Curve 0
