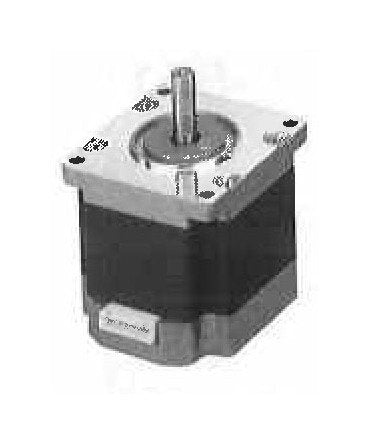

NEMA 23 3-Phase Hybrid Stepping Motor - KT Series, 0.6 Degree/Step
NEMA 23 3-Phase Hybrid Stepping Motor - KT Series, 0.6 Degree/Step
SKU:STE-3d9bf2
Powerful NEMA 23 3-Phase Stepping Motor with micro-step driver for precise control and minimal noise. Ideal for industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
NEMA 23 3-Phase Hybrid Stepping Motor - KT Series, 0.6 Degree/Step
$89.99
Quantity: 1
Claim Your Seller Account
NEMA 23 3-Phase Hybrid Stepping Motor - KT Series, 0.6 Degree/Step
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 23 3-Phase Hybrid Stepping Motor from the KT Series offers exceptional performance for industrial applications. Featuring a star winding connection for simplified drive circuits, this motor delivers high torque at low speeds with ultra-low vibration and noise levels. With micro-step driver compatibility allowing selection of step angles ranging from 1/1 to 1/8, precision and efficiency are guaranteed. Ideal for applications requiring reliable motion control with minimal noise output.
Product Specifications
Additional Information 0
a2036.jpg | a2071.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT60K.jpg | KT60LM06-752 VIBRATION.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
2.2 A
Specifications Detent Torque
2.1 oz·in | 15 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
8.3 oz·in | 600 mN·m
Specifications Inductance2 Phase
5.7 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
265 g·cm² | 1.45 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
60 x 58 mm | 2.36 x 2.29 in.
Specifications Step Angle
0.6 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
4.84 V
Specifications Weight
720 g | 1.6 lb
Specifications Winding Resistance2 Phase
2.2 Ω
Torque Curve 0
KT60LM06-752 ST CURVE.jpg
