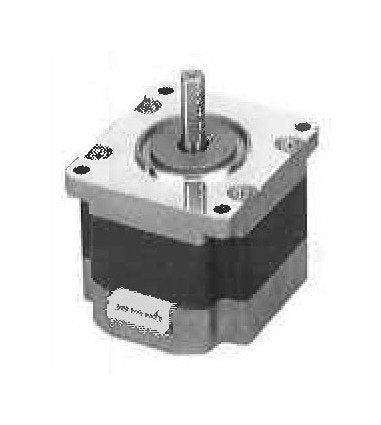

NEMA 23 3-Phase Hybrid Stepping Motor - KT Series (0.6°/Step)
NEMA 23 3-Phase Hybrid Stepping Motor - KT Series (0.6°/Step)
SKU:STE-976232
Experience high torque at low speeds with the NEMA 23 3-Phase Stepping Motor from the KT Series. Enjoy ultra-low vibration and noise levels. Choose from multiple step angle options easily.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
NEMA 23 3-Phase Hybrid Stepping Motor - KT Series (0.6°/Step)
$89.99
Quantity: 1
Claim Your Seller Account
NEMA 23 3-Phase Hybrid Stepping Motor - KT Series (0.6°/Step)
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 23 3-Phase Hybrid Stepping Motor from the KT Series offers exceptional torque at low speeds thanks to its micro-step driver. Achieve ultra-low vibration and noise levels with ease. Select step angle variations of 1/1, 1/2, 1/4, or 1/8 effortlessly. With a frame size of 60 x 47 mm, this motor meets high standards of efficiency, performance, and durability.
Product Specifications
Additional Information 0
a2035.jpg | a2069.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT60K.jpg | KT60KM06-552 VIBRATION.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
2.2 A
Specifications Detent Torque
2.8 oz·in | 20 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
69 oz·in | 500 mN·m
Specifications Inductance2 Phase
3.0 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
170 g·cm² | 0.93 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
60 x 47 mm | 2.36 x 1.85 in.
Specifications Step Angle
0.6 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
3.52 V
Specifications Weight
550 g | 1.2 lb
Specifications Winding Resistance2 Phase
1.6 Ω
Torque Curve 0
KT60KM06-552 ST CURVE.jpg
