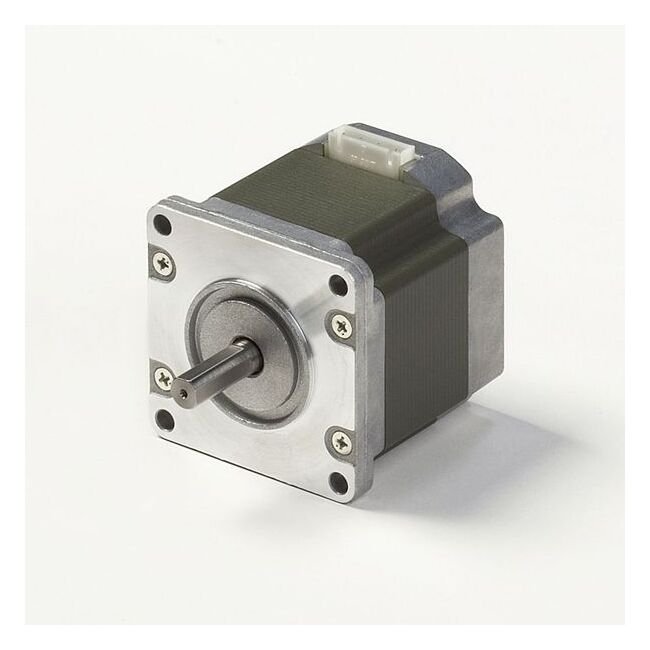

Nema 23 3 Phase Hybrid Stepping Motor - KT Series (0.6°/Step)
Nema 23 3 Phase Hybrid Stepping Motor - KT Series (0.6°/Step)
SKU:STE-842a2f
Enhance precision and performance with the Nema 23 3 Phase Hybrid Stepping Motor from the KT Series. Enjoy simplified drive circuits, high torque at low speeds, and ultra-low vibration for reliable operation.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Nema 23 3 Phase Hybrid Stepping Motor - KT Series (0.6°/Step)
$79.99
Quantity: 1
Claim Your Seller Account
Nema 23 3 Phase Hybrid Stepping Motor - KT Series (0.6°/Step)
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nema 23 3 Phase Hybrid Stepping Motor from the KT Series offers a simplified drive circuit with star winding connection, high torque at low speeds, ultra-low vibration, and low noise thanks to the micro-step driver technology. With selectable step angles of 1/1, 1/2, 1/4, or 1/8, this motor provides precision and versatility. Designed with 3 phases and a step angle of 0.6 degrees/step, it delivers a holding torque of 125 oz·in, making it ideal for applications requiring accuracy and reliability. Its compact size, superior performance, and robust build quality set it apart in the world of stepping motors.
Product Specifications
Additional Information 0
a2071.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT60K.jpg | KT60LM06-551 VIBRATION.jpg | KT60LM06-551-.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
3.8 A
Specifications Detent Torque
3.5 oz·in | 25 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
125 oz·in | 900 mN·m
Specifications Inductance2 Phase
1.7 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
265 g·cm² | 1.45 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
60 x 58 mm | 2.36 x 2.29 in.
Specifications Step Angle
0.6 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
2.77 V
Specifications Weight
720 g | 1.6 lb
Specifications Winding Resistance2 Phase
0.73 Ω
Torque Curve 0
KT60LM06-551 ST CURVE.jpg
