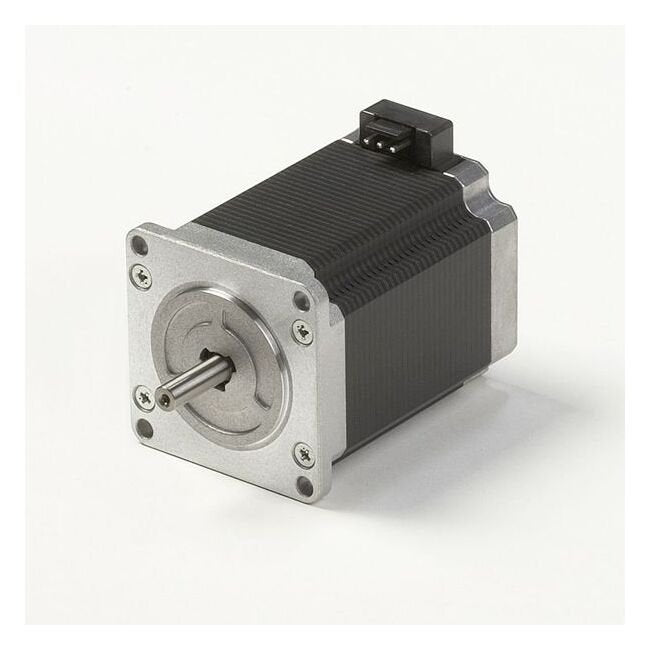

NEMA 23 3-Phase Hybrid Stepping Motor - KT Series (1.2 Degree/Step)
NEMA 23 3-Phase Hybrid Stepping Motor - KT Series (1.2 Degree/Step)
SKU:STE-607557
Achieve precise motion control with the NEMA 23 3-Phase Hybrid Stepping Motor from the KT Series featuring high torque, low vibration, and noise levels.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
NEMA 23 3-Phase Hybrid Stepping Motor - KT Series (1.2 Degree/Step)
$89.99
Quantity: 1
Claim Your Seller Account
NEMA 23 3-Phase Hybrid Stepping Motor - KT Series (1.2 Degree/Step)
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 23 3-Phase Hybrid Stepping Motor from the KT Series offers simplified drive circuitry with star winding connection, delivering high torque at low speeds, ultra-low vibration, and noise levels. With a micro-step driver, choose step angle ratios of 1/1, 1/2, 1/4, or 1/8 for precise control. This motor ensures optimal performance in various industrial applications while meeting stringent procurement standards and certifications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
a2067.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT Series, 3 phase Hybrid Stepping Motor (KT56QM1-551) | KT56QM1-551-VIBRATION.jpg | KT60K.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
80 ºK
Specifications Current Per 2 Phase
3.0 A
Specifications Detent Torque
11.3 oz·in | 80 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
156 oz·in | 1100 mN·m
Specifications Inductance2 Phase
1.7 mH
Specifications Insulation Class
Jis Class E (130ºC/266ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
3
Specifications Operating Temperature Range
-10 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
360 g·cm² | 1.97 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
56 x 76 mm | 2.21 x 2.98 in.
Specifications Step Angle
1.2 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
5.10 V
Specifications Weight
980 g | 2.1 lb
Specifications Winding Resistance2 Phase
1.7 Ω
Torque Curve 0
