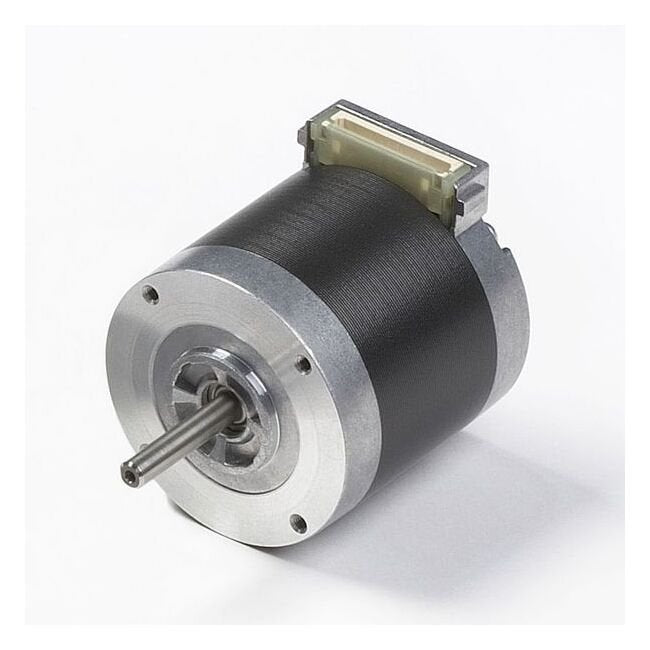

NEMA 23-60mm Stepping Motor with 3-Channel Encoder - KA60 Series
NEMA 23-60mm Stepping Motor with 3-Channel Encoder - KA60 Series
SKU:STE-1463ff
High torque NEMA 23-60mm Stepping Motor with 3-Channel Encoder, precise 1.8°/step, ideal for industrial automation.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
NEMA 23-60mm Stepping Motor with 3-Channel Encoder - KA60 Series
$99.99
Quantity: 1
Claim Your Seller Account
NEMA 23-60mm Stepping Motor with 3-Channel Encoder - KA60 Series
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 23-60mm Stepping Motor from the KA60 Series with 1.8 Degree/Step precision offers exceptional performance for applications requiring high torque, low vibration, and precise positioning. Designed with the latest three-dimensional magnetic field analysis technology, this motor ensures silent operation and optimal magnetic balance. With a holding torque of 227 oz·in and advanced bipolar winding method, it delivers reliable and robust performance. Ideal for industrial automation and robotics, this motor's 3-channel encoder and compliance with standard specifications make it a versatile choice for institutional procurement.
Product Specifications
Additional Information 0
Explanation of Dynamic Torque Curves | KA Series Motors with Encoder Motors (1.8 Degree/Step) (KA50JM2-X18) | KA Series Motors with Encoder Motors (1.8 Degree/Step) (KA60JM2E2-501) | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2)
Customize 0
Custom Designs
Dimensions 0
Connection Diagrams | Outline
Specifications Base Motor
KA60LM2-552
Specifications Current Per Phase
2.2 A
Specifications Detent Torque
8.5 oz·in | 60 mN·m
Specifications Holding Torque
227 oz·in | 1600 mN·m
Specifications Inductance Per Phase
4.9 mH
Specifications L
2.56 in | 65 mm
Specifications Motor Frame Size
NEMA 23
Specifications Note
The basic motor characteristics, connection diagrams, and accessories (lead connectors) conform to the standard specifications.
Specifications No Of Channels
3
Specifications Output Aspect
A | B | I
Specifications Output Wave Form
TTL
Specifications Power Supply Voltage
DC 5V ±0.5 V
Specifications Product Type
Stepper Motor
Specifications Recommended Pull Up Resistor Value R
2.7 K Ω
Specifications Reference Part Number
KA60LM2-552
Specifications Resistance Per Phase
1.7 Ω
Specifications Resolution Pr
400
Specifications Rotor Inertia
360 g·cm² | 2.0 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA Series Motors with Encoder Motors (1.8 Degree/Step) - NEMA 17 / 23
Specifications Voltage Per Phase
3.74 V
Specifications Weight
850 g | 1.9 lb
Specifications Winding Method
Bipolar
Torque Curve 0
