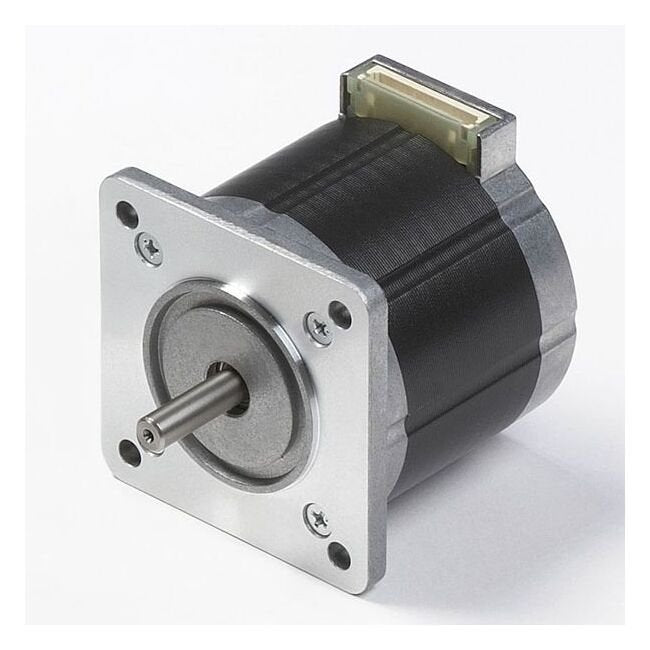

NEMA 23 Hybrid Motor (1.8°/Step) - KA60 Series
NEMA 23 Hybrid Motor (1.8°/Step) - KA60 Series
SKU:STE-4d131a
High torque, low vibration NEMA 23 Hybrid Motor with precise 1.8°/Step angle for superior performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
NEMA 23 Hybrid Motor (1.8°/Step) - KA60 Series
$89.99
Quantity: 1
Claim Your Seller Account
NEMA 23 Hybrid Motor (1.8°/Step) - KA60 Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 23 Hybrid Motor from the KA60 Series boasts exceptional torque, low vibration, and silent operation, ensuring high position accuracy. Engineered with optimal magnetic balance using advanced three-dimensional magnetic field analysis, this stepper motor enhances motor performance. With a frame size of NEMA 23, step angle of 1.8 degrees/step, and a holding torque of 100 oz·in, it offers reliable precision for various applications.
Product Specifications
Additional Information 0
a1224.jpg | a1226.jpg | Explanation of Dynamic Torque Curves | KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 23 (KA60JM2)
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
2.2 A
Specifications Detent Torque
5.0 oz·in | 35 mN·m
Specifications Holding Torque
100 oz·in | 707 mN·m
Specifications Inductance Per Phase
1.8 mH
Specifications L
1.73 in | 44 mm
Specifications Motor Frame Size
NEMA 23
Specifications Product Type
Stepper Motor
Specifications Reference Part Number
KA60JM2-502
Specifications Resistance Per Phase
1.55 Ω
Specifications Rotor Inertia
180 g·cm² | 1.0 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 23
Specifications Voltage Per Phase
3.41 V
Specifications Weight
500 g | 1.1 lb
Specifications Winding Method
Unipolar
Torque Curve 0
