Nema 23 Hybrid Step Motor - KH56JM2 Series
Nema 23 Hybrid Step Motor - KH56JM2 Series
SKU:STE-b5b71d
Enhanced Nema 23 Hybrid Step Motor for high-speed applications with increased torque, reduced vibration, and improved efficiency.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Nema 23 Hybrid Step Motor - KH56JM2 Series
$89.99
Quantity: 1
Claim Your Seller Account
Nema 23 Hybrid Step Motor - KH56JM2 Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

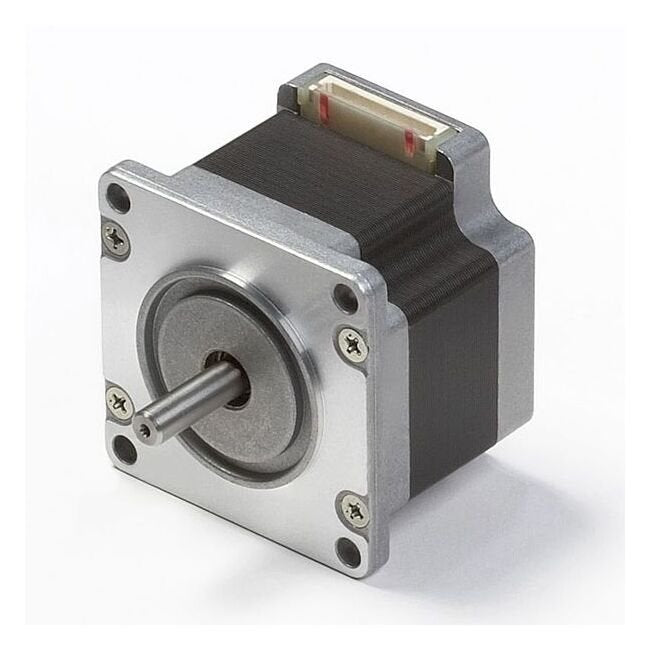

The Nema 23 KH56JM2 Series 2-Phase Hybrid Stepping Motor offers exceptional performance for high-speed applications, delivering 1.2 times more torque at 1200 r/min compared to previous models. With a 1.8-degree step angle, increased body stiffness reducing vibration by 10%, and improved efficiency by 1.1 times, this motor ensures reliable operation. Weighing 650g and meeting JIS Class E/UL Class B insulation standards, it guarantees durability and optimal performance.
Product Specifications
Additional Information 0
Connection Cable to Motor KH 56 | Connection Diagrams | Driver Selection Guide | Explanation of Dynamic Torque Curves | Motor Selection Guide | System Configuration
Customize 0
Custom Designs
Dimensions 0
Dimensions
Specifications Allowable Temperature Range
70 ºK
Specifications Current Per Phase
1.0 A
Specifications Detent Torque
5.2 oz·in | 37 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Unipolar
Specifications Holding Torque
118 oz·in | 834 mN·m
Specifications Inductance Per Phase
9.36 mH
Specifications Insulation Class
JIS Class E (120ºC/248ºF) | UL Value : Class B (130ºC/266ºF)
Specifications Insulation Resistance
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
2
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Hybrid Stepping Motor
Specifications Rotor Inertia
1.0 oz·in² | 188 g·cm²
Specifications Series
2 Phase Square KH
Specifications Shaft Specification
Single Shaft
Specifications Step Angle
1.8 deg./step
Specifications Voltage
6.71 V
Specifications Weight
650 g | 1.4 lb
Specifications Winding Resistance Per Phase
6.71 Ω
Torque Curve 0
