Nema 23 Hybrid Stepping Motor - KH56JM2 Series
$89.99
Quantity: 1
Claim Your Seller Account
Nema 23 Hybrid Stepping Motor - KH56JM2 Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

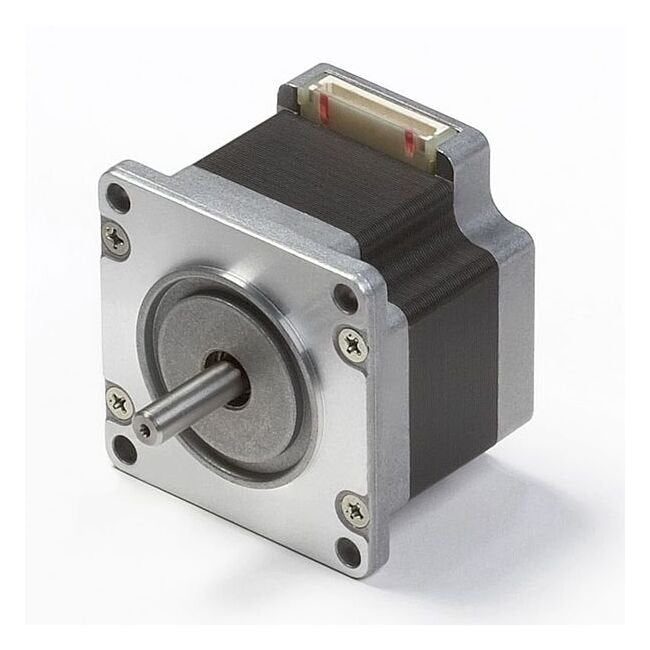

The Nema 23 KH56JM2 Series 2-Phase Hybrid Stepping Motor offers enhanced performance with 1.2 times the torque at 1200 r/min speed, 10% reduced vibration, and 1.1 times improved efficiency compared to previous models. With a drive method of unipolar and a step angle of 1.8 deg./step, this motor ensures precise motion control. Weighing 650g, it operates in temperatures ranging from 0 to 50 °C, meeting industry-standard insulation classes and resistance levels for reliable performance.
Product Specifications
Additional Information 0
Connection Cable to Motor KH 56 | Connection Diagrams | Driver Selection Guide | Explanation of Dynamic Torque Curves | Motor Selection Guide | System Configuration
Customize 0
Custom Designs
Dimensions 0
Dimensions
Specifications Allowable Temperature Range
70 ºK
Specifications Current Per Phase
2.0 A
Specifications Detent Torque
5.2 oz·in | 37 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Unipolar
Specifications Holding Torque
118 oz·in | 834 mN·m
Specifications Inductance Per Phase
3.0 mH
Specifications Insulation Class
JIS Class E (120ºC/248ºF) | UL Value : Class B (130ºC/266ºF)
Specifications Insulation Resistance
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
2
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Hybrid Stepping Motor
Specifications Rotor Inertia
1.0 oz·in² | 188 g·cm²
Specifications Series
2 Phase Square KH
Specifications Shaft Specification
Single Shaft
Specifications Step Angle
1.8 deg./step
Specifications Voltage
3.60 V
Specifications Weight
650 g | 1.4 lb
Specifications Winding Resistance Per Phase
1.79 Ω
