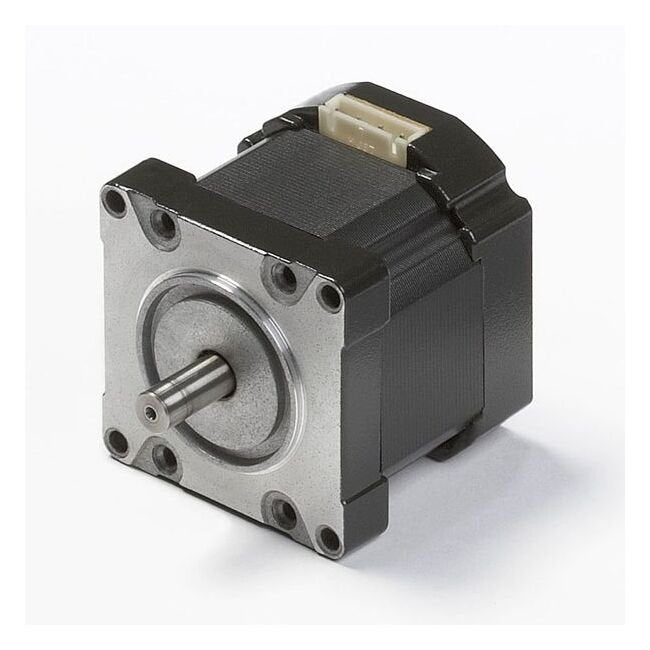

Nema 23 Hybrid Stepping Motor - KT Series 3 Phase (1.2 Degree/Step)
Nema 23 Hybrid Stepping Motor - KT Series 3 Phase (1.2 Degree/Step)
SKU:STE-e01b98
Enhance productivity with the Nema 23 Hybrid Stepping Motor from the KT Series, offering high torque and ultra-low vibration for precision performance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Nema 23 Hybrid Stepping Motor - KT Series 3 Phase (1.2 Degree/Step)
$129.99
Quantity: 1
Claim Your Seller Account
Nema 23 Hybrid Stepping Motor - KT Series 3 Phase (1.2 Degree/Step)
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nema 23 Hybrid Stepping Motor from the KT Series delivers exceptional performance with a simplified drive circuit for efficient operation. Featuring star winding connection, this motor achieves high torque at low speeds with ultra-low vibration and noise levels. The micro-step driver allows step angle selection between 1/1, 1/2, 1/4, or 1/8, ensuring versatile usage across industrial applications. With a robust design and precise engineering, this motor guarantees reliability and optimal functionality for demanding operational needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
a2067.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT56KM1-551-VIBRATION.jpg | KT56KM4.jpg | KT60K.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
80 ºK
Specifications Current Per 2 Phase
3.0 A
Specifications Detent Torque
6.4 oz·in | 45 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
97.4 oz·in | 690 mN·m
Specifications Inductance2 Phase
1.4 mH
Specifications Insulation Class
Jis Class E (130ºC/266ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
3
Specifications Operating Temperature Range
-10 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
210 g·cm² | 1.15 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
56 x 52 mm | 2.21 x 2.04 in.
Specifications Step Angle
1.2 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
4.20 V
Specifications Weight
650 g | 1.4 lb
Specifications Winding Resistance2 Phase
1.4 Ω
Torque Curve 0
