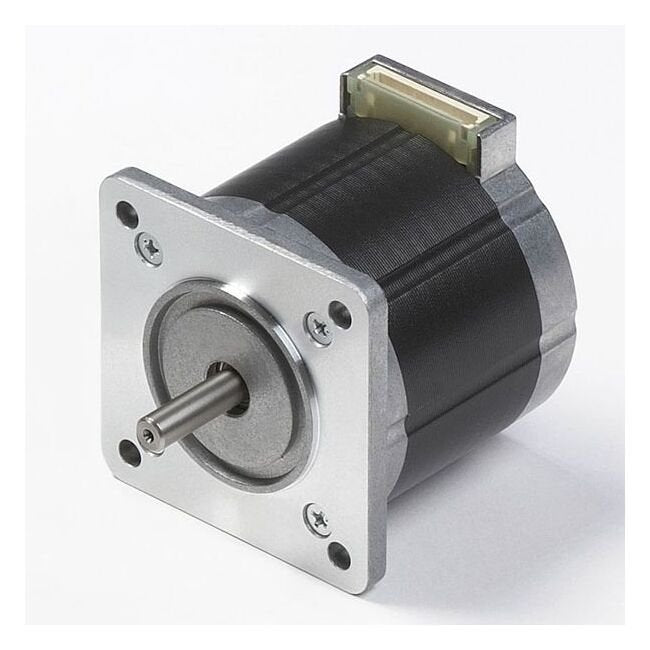

NEMA 23 KA60 Series 2-Phase Hybrid Motor
NEMA 23 KA60 Series 2-Phase Hybrid Motor
SKU:STE-edff5b
High-torque, low-vibration NEMA 23 stepper motor with 1.8° step angle for precise positioning in industrial settings.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
NEMA 23 KA60 Series 2-Phase Hybrid Motor
$89.99
Quantity: 1
Claim Your Seller Account
NEMA 23 KA60 Series 2-Phase Hybrid Motor
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 23 KA60 Series 2-Phase Hybrid Motor offers superior performance with high torque, low vibration, and silent operation. Featuring a step angle of 1.8 degrees/step, this stepper motor ensures precise positioning and efficiency. Employing the best magnetic balance and advanced technology for enhanced motor performance, it is designed to meet the rigorous demands of industrial applications.
Product Specifications
Additional Information 0
a1224.jpg | a1226.jpg | Explanation of Dynamic Torque Curves | KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 23 (KA60JM2) | KA60KM.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
3.3 A
Specifications Detent Torque
7.1 oz·in | 50 mN·m
Specifications Holding Torque
143 oz·in | 1011 mN·m
Specifications Inductance Per Phase
1.4 mH
Specifications L
2.13 in | 54 mm
Specifications Motor Frame Size
NEMA 23
Specifications Product Type
Stepper Motor
Specifications Reference Part Number
KA60KM2-501
Specifications Resistance Per Phase
0.9 Ω
Specifications Rotor Inertia
270 g·cm² | 1.5 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 23
Specifications Voltage Per Phase
2.97 V
Specifications Weight
700 g | 1.5 lb
Specifications Winding Method
Unipolar
Torque Curve 0
