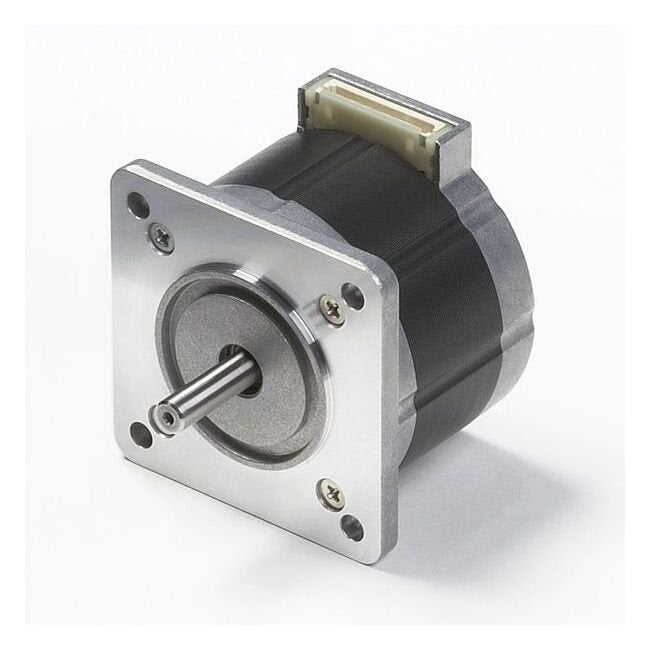

• NEMA 23 KA60 Series 2 Phase Hybrid Motor - Image 1
1 1
Elinco International JPC, Inc. →

NEMA 23 KA60 Series 2 Phase Hybrid Motor

NEMA 23 KA60 Series 2 Phase Hybrid Motor

STE-8fb407

High torque, low vibration NEMA 23 motor with 1.8 deg./step angle for precise and silent operation.

$89.99
$89.99
Sale

Initiate Order

NEMA 23 KA60 Series 2 Phase Hybrid Motor

NEMA 23 KA60 Series 2 Phase Hybrid Motor

$89.99

Quantity: 1

Claim Your Seller Account

NEMA 23 KA60 Series 2 Phase Hybrid Motor

NEMA 23 KA60 Series 2 Phase Hybrid Motor

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The NEMA 23 KA60 Series 2 Phase Hybrid Motor offers superior performance for various applications. With a step angle of 1.8 degrees/step and high torque capabilities, this motor ensures reliable and precise operation. Its low vibration and silent operation make it ideal for noise-sensitive environments, while the high position accuracy guarantees consistent results. Utilizing advanced magnetic balance and robust design, this motor delivers enhanced efficiency and durability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information 0
a1224.jpg | a1226.jpg | Explanation of Dynamic Torque Curves | KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 23 (KA60JM2) | KA60LM2.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
2.2 A
Specifications Detent Torque
8.5 oz·in | 60 mN·m
Specifications Holding Torque
186 oz·in | 1315 mN·m
Specifications Inductance Per Phase
3.4 mH
Specifications L
2.56 in | 65 mm
Specifications Motor Frame Size
NEMA 23
Specifications Product Type
Stepper Motor
Specifications Reference Part Number
KA60LM2-502
Specifications Resistance Per Phase
2.4 Ω
Specifications Rotor Inertia
360 g·cm² | 2.0 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 23
Specifications Voltage Per Phase
5.28 V
Specifications Weight
850 g | 1.9 lb
Specifications Winding Method
Unipolar
