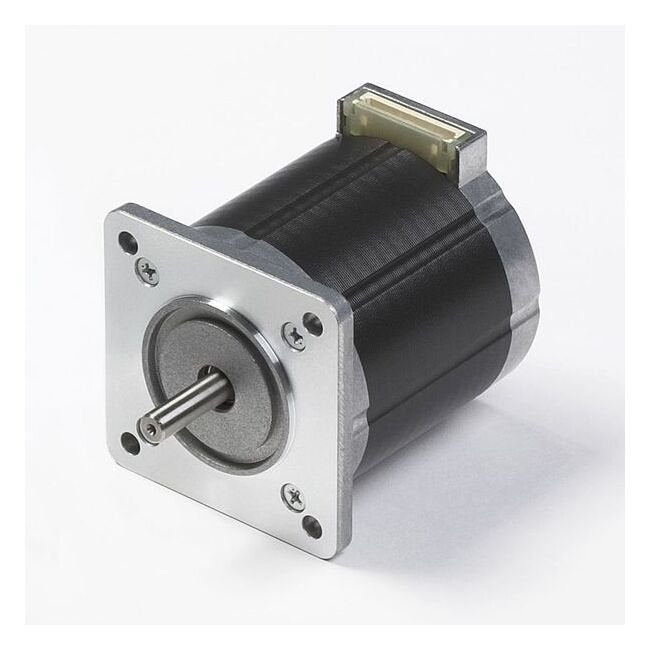

• NEMA 23 Stepper Motor - KA60 Series 2 Phase Hybrid Motor - Image 1
1 1
Elinco International JPC, Inc. →

NEMA 23 Stepper Motor - KA60 Series 2 Phase Hybrid Motor

NEMA 23 Stepper Motor - KA60 Series 2 Phase Hybrid Motor

STE-d0559c

High torque, low vibration stepper motor with 1.8 deg./step angle for precise industrial applications.

$89.99
$89.99
Sale

Initiate Order

NEMA 23 Stepper Motor - KA60 Series 2 Phase Hybrid Motor

NEMA 23 Stepper Motor - KA60 Series 2 Phase Hybrid Motor

$89.99

Quantity: 1

Claim Your Seller Account

NEMA 23 Stepper Motor - KA60 Series 2 Phase Hybrid Motor

NEMA 23 Stepper Motor - KA60 Series 2 Phase Hybrid Motor

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The KA60 Series 2 Phase Hybrid Motor is a premium stepper motor designed for high torque, low vibration, and silent operation. With a step angle of 1.8 degrees/step, this motor offers exceptional position accuracy. Leveraging advanced three-dimensional magnetic field analysis, it ensures optimal magnetic balance and robust performance. Ideal for industrial applications requiring precision and reliability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information 0
a1224.jpg | a1226.jpg | Explanation of Dynamic Torque Curves | KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 23 (KA60JM2) | KA60KM.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
2.2 A
Specifications Detent Torque
7.1 oz·in | 50 mN·m
Specifications Holding Torque
143 oz·in | 1011 mN·m
Specifications Inductance Per Phase
3.0 mH
Specifications L
2.13 in | 54 mm
Specifications Motor Frame Size
NEMA 23
Specifications Product Type
Stepper Motor
Specifications Reference Part Number
KA60KM2-502
Specifications Resistance Per Phase
2.0 Ω
Specifications Rotor Inertia
270 g·cm² | 1.5 oz·in²
Specifications Series
2 Phase Round KA
Specifications Step Angle
1.8 deg./step
Specifications Type
KA60 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - NEMA 23
Specifications Voltage Per Phase
4.40 V
Specifications Weight
700 g | 1.5 lb
Specifications Winding Method
Unipolar
