Nema 23 Stepping Motor - KH56JM2 Series
Nema 23 Stepping Motor - KH56JM2 Series
SKU:STE-115a9b
Enhanced Nema 23 Stepping Motor with increased torque, reduced vibration, and improved efficiency for precise motion control.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Nema 23 Stepping Motor - KH56JM2 Series
$69.99
Quantity: 1
Claim Your Seller Account
Nema 23 Stepping Motor - KH56JM2 Series
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

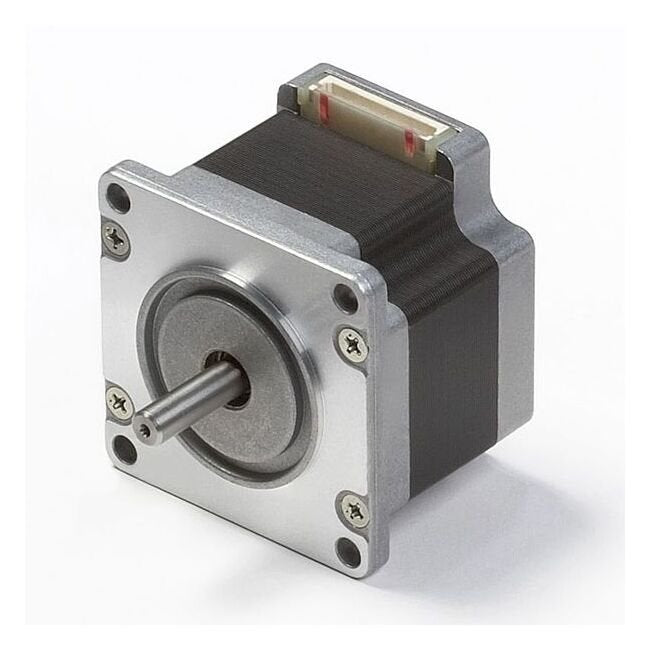

The Nema 23 KH56JM2 Series 2-Phase Hybrid Stepping Motor boasts enhanced performance with 1.2 times stronger torque, 10% reduced vibration, and 1.1 times improved efficiency compared to the previous model. With a NEMA 23 frame size, 1.8-degree step angle, and high-grade materials, this motor ensures reliability and precision in various applications.
Product Specifications
Additional Information 0
Connection Cable to Motor KH 56 | Connection Diagrams | Driver Selection Guide | Explanation of Dynamic Torque Curves | Motor Selection Guide | System Configuration
Customize 0
Custom Designs
Dimensions 0
Dimensions
Specifications Allowable Temperature Range
70 ºK
Specifications Current Per Phase
2.0 A
Specifications Detent Torque
9.8 oz·in | 69 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Unipolar
Specifications Holding Torque
187 oz·in | 1324 mN·m
Specifications Inductance Per Phase
5.4 mH
Specifications Insulation Class
JIS Class E (120ºC/248ºF) | UL Value : Class B (130ºC/266ºF)
Specifications Insulation Resistance
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
2
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Hybrid Stepping Motor
Specifications Rotor Inertia
1.47 oz·in² | 269 g·cm²
Specifications Series
2 Phase Square KH
Specifications Shaft Specification
Single Shaft
Specifications Step Angle
1.8 deg./step
Specifications Voltage
5.46 V
Specifications Weight
1.0 g | 2.2 lb
Specifications Winding Resistance Per Phase
2.73 Ω
Torque Curve 0
