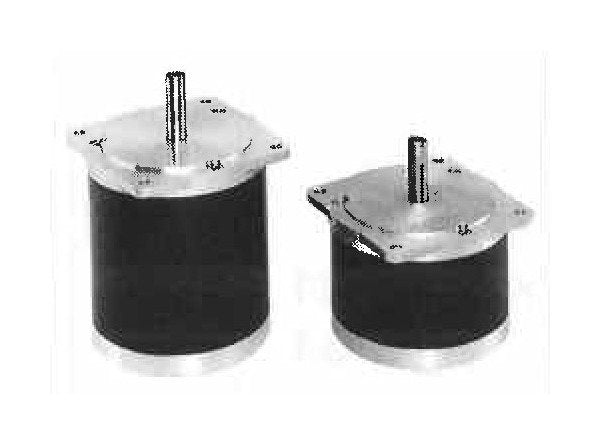

Nema 34 3 Phase Hybrid Stepping Motor - KT Series (1.2°/Step)
Nema 34 3 Phase Hybrid Stepping Motor - KT Series (1.2°/Step)
SKU:STE-31fe34
Powerful Nema 34 3 Phase Hybrid Stepping Motor for precision control and high torque in industrial settings.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Nema 34 3 Phase Hybrid Stepping Motor - KT Series (1.2°/Step)
$129.99
Quantity: 1
Claim Your Seller Account
Nema 34 3 Phase Hybrid Stepping Motor - KT Series (1.2°/Step)
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nema 34 3 Phase Hybrid Stepping Motor from the KT Series offers exceptional performance for industrial applications. Featuring a simplified drive circuit with star winding connection for ease of operation, this motor delivers high torque at low speeds using a micro-step driver. Benefit from ultra-low vibration and noise levels, adjustable step angles (1/1, 1/2, 1/4, or 1/8), and precise control. Measuring 86 x 95 mm and with a holding torque of 556 oz·in, this motor is designed for reliability and efficiency in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
a2040.jpg | a2079.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT60K.jpg | KT86SM1-551-VIBRATION.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
2.5 A
Specifications Detent Torque
27.8 oz·in | 0.2 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
556 oz·in | 4000 mN·m
Specifications Inductance2 Phase
36.6 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 34
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
1340 g·cm² | 7.34 oz·in²
Specifications Series
3 Phase KT
Specifications Shaft Type
Single Shaft
Specifications Standard Size
86 x 95 mm | 3.38 x 3.74 in.
Specifications Step Angle
1.2 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
7.0 V
Specifications Weight
2.1 g | 4.63 lb
Specifications Winding Resistance2 Phase
2.8 Ω
Torque Curve 0
