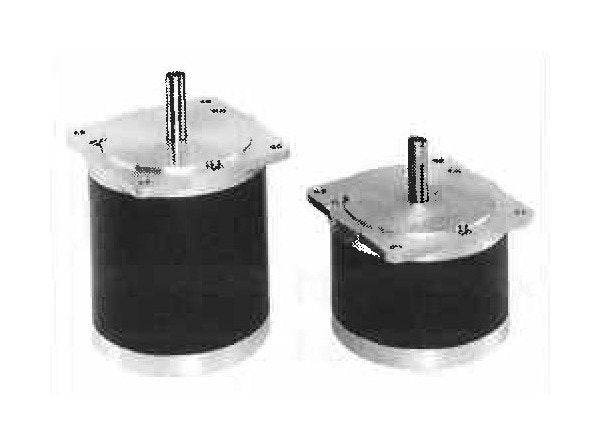

NEMA 34 Three-Phase Hybrid Stepping Motor (1.2°/Step) - KT Series
NEMA 34 Three-Phase Hybrid Stepping Motor (1.2°/Step) - KT Series
SKU:STE-b09d85
Experience optimal torque and precision control with the NEMA 34 Three-Phase Hybrid Stepping Motor from the KT Series.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
NEMA 34 Three-Phase Hybrid Stepping Motor (1.2°/Step) - KT Series
$199.99
Quantity: 1
Claim Your Seller Account
NEMA 34 Three-Phase Hybrid Stepping Motor (1.2°/Step) - KT Series
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA 34 Three-Phase Hybrid Stepping Motor from the KT Series delivers exceptional performance with a simplified drive circuit using star winding connection. This motor ensures high torque at low speeds, ultra-low vibration, and minimal noise levels with a micro-step driver. You can easily set motor step angles at 1/1, 1/2, 1/4, or 1/8 for precise control. With a robust design and exceptional specifications, this stepper motor is ideal for industrial applications requiring reliability and precision.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
a2040.jpg | a2079.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT60K.jpg | KT86LM1-551-VIBRATION.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
3.0 A
Specifications Detent Torque
13.9 oz·in | 0.1 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
278 oz·in | 2000 mN·m
Specifications Inductance2 Phase
18.0 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 34
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
670 g·cm² | 3.67 oz·in²
Specifications Series
3 Phase KT
Specifications Shaft Type
Single Shaft
Specifications Standard Size
86 x 61 mm | 3.38 x 2.40 in.
Specifications Step Angle
1.2 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
5.4 V
Specifications Weight
1.6 g | 3.52 lb
Specifications Winding Resistance2 Phase
1.8 Ω
Torque Curve 0
