NEMA 4 Cabinet Cooler System - 1700 Btu/hr Non-Hazardous Purge

Name: NEMA 4 Cabinet Cooler System - 1700 Btu/hr Non-Hazardous Purge
Brand: Exair LLC
SKU: NEM-1bde01
Price: 539.99 USD
Availability: OutOfStock

SKU:NEM-1bde01

Efficient NEMA 4 Cabinet Cooler System - 1700 Btu/hr, maintenance-free, ideal for control panels

$539.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

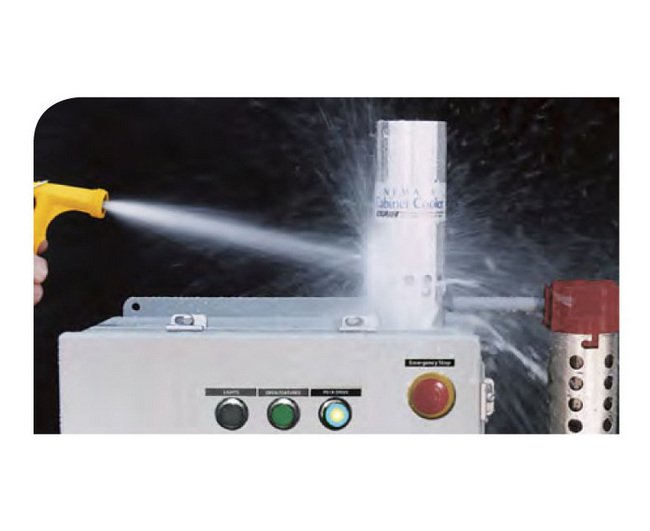

The NEMA 4 Cabinet Cooler System with a 1700 Btu/hr capacity offers a reliable and cost-effective solution for cooling and purging electronic control panels. Utilizing a vortex tube to generate cold air from compressed air, this maintenance-free system eliminates heat damage, reduces noise, and maintains enclosure integrity. Ideal for various applications including food service equipment, laser housings, and CNC systems, it ensures stable temperature and humidity levels while preventing dirt contamination. Easy to install and operable in dirty environments, this NEMA 4 (IP66) compliant cooler system enhances equipment longevity and operational efficiency.

Product Specifications

Specifications Capacity

1,700 Btu/hr | 428 kcal/h

Specifications Note

Non-Hazardous Purge Cabinet Cooler Systems are ideal for dirty areas where contaminants might normally pass through small holes or conduits. Under normal conditions, the NHP Cabinet Cooler Systems provide a slight positive pressure in the enclosure by passing 1 SCFM (28 SLPM) of air through the cooler, when the solenoid valve is in the closed position. When the thermostat detects high temperature, it energizes the solenoid valve to pass full line pressure to the Cabinet Cooler, giving it full cooling capability.

Specifications Sound Level

80 dBA

NEMA 4 Cabinet Cooler System - 1700 Btu/hr Non-Hazardous Purge
