NEMA CE Canvas Phenolic Rod - Natural
NEMA CE Canvas Phenolic Rod - Natural
SKU:SHA-a284f4
High-strength NEMA CE Canvas Phenolic Rod for industrial applications. Meets FED. SPEC. LP-509A & MIL standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NEMA CE Canvas Phenolic Rod - Natural
$49.99
Quantity: 1
Claim Your Seller Account
NEMA CE Canvas Phenolic Rod - Natural
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

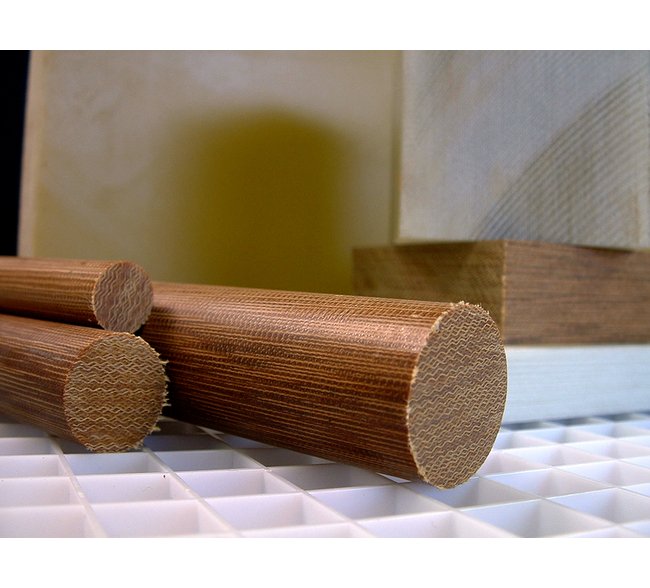

The NEMA CE Canvas Phenolic Rod in natural finish is a high-performance thermoset composite material meeting FED. SPEC. LP-509A TYPE II/CE, MIL-P-15035FBE, and MIL-I-24768/14 TYPE FBG standards. Made of medium weave cotton cloth fabrics combined with phenolic resins, this rod offers exceptional strength, durability, and electrical properties. With a set shape and excellent dimensional stability, it is ideal for mechanical and electrical applications requiring support components. The rod is easy to fabricate, machine, and resistant to wear, making it suitable for various industrial uses.
Product Specifications
Specifications Coefficient Of Thermal Expansion Crosswise
1.22 x 10-5 in/in/ºF
Specifications Coefficient Of Thermal Expansion Lengthwise
1.10 x 10-5 in/in/ºF
Specifications Compressive Strength
37000 psi
Specifications Density Astm D792
0.050 g/cm³
Specifications Dielectric Strength Short Time 0125 Astm D149
550 V/mil
Specifications Flammability Rating Ul 94
HB
Specifications Flexural Modulus Crosswise Astm D790
1500000 psi
Specifications Flexural Modulus Lengthwise Astm D790
1600000 psi
Specifications Flexural Strength Crosswise Astm D790
15000 psi
Specifications Flexural Strength Lengthwise Astm D790
17500 psi
Specifications Hardness Rockwell Astm D785
M100
Specifications Izod Impact Strength Notched Crosswise Astm D256
1.5 ft·lb/in
Specifications Izod Impact Strength Notched Lengthwise Astm D256
1.7 ft·lb/in
Specifications Length
4 ft
Specifications Maximum Operating Temperature
257 ºF
Specifications Tensile Strength Crosswise Astm D638
9000 psi
Specifications Tensile Strength Lengthwise Astm D638
11000 psi
Specifications Tolerance
± 0.003 in
