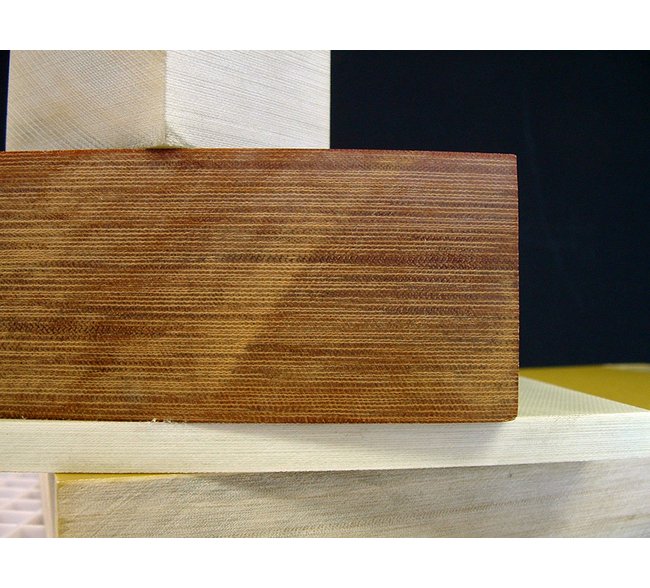

NEMA CE Canvas Phenolic Sheet - Natural 0.500 in Thickness
NEMA CE Canvas Phenolic Sheet - Natural 0.500 in Thickness
SKU:SHA-e7b473
High-performance NEMA CE Canvas Phenolic Sheet for mechanical and electrical applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
NEMA CE Canvas Phenolic Sheet - Natural 0.500 in Thickness
$129.99
Quantity: 1
Claim Your Seller Account
NEMA CE Canvas Phenolic Sheet - Natural 0.500 in Thickness
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA CE Canvas Phenolic Sheet in natural finish is manufactured to meet FED. SPEC. LP-509A TYPE II/CE, MIL-P-15035FBE, and MIL-I-24768/14 TYPE FBG standards. This thermoset composite material offers exceptional mechanical strength, high impact resistance, and excellent electrical properties, making it ideal for a wide range of mechanical and electrical applications. With a thickness of 0.500 inches, sheet size of 48 x 96 inches, and key attributes like 17500 psi flexural strength lengthwise, this phenolic sheet is a reliable choice for structural supports, gears, spacers, and more.
Product Specifications
Specifications Coefficient Of Thermal Expansion Crosswise
1.22 x 10-5 in/in/ºF
Specifications Coefficient Of Thermal Expansion Lengthwise
1.10 x 10-5 in/in/ºF
Specifications Compressive Strength
37000 psi
Specifications Density Astm D792
0.050 g/cm³
Specifications Dielectric Strength Short Time 0125 Astm D149
550 V/mil
Specifications Flammability Rating Ul 94
HB
Specifications Flexural Modulus Crosswise Astm D790
1500000 psi
Specifications Flexural Modulus Lengthwise Astm D790
1600000 psi
Specifications Flexural Strength Crosswise Astm D790
15000 psi
Specifications Flexural Strength Lengthwise Astm D790
17500 psi
Specifications Hardness Rockwell Astm D785
M100
Specifications Izod Impact Strength Notched Crosswise Astm D256
1.5 ft·lb/in
Specifications Izod Impact Strength Notched Lengthwise Astm D256
1.7 ft·lb/in
Specifications Maximum Operating Temperature
257 ºF
Specifications Sheet Size
48 x 96 in
Specifications Tensile Strength Crosswise Astm D638
9000 psi
Specifications Tensile Strength Lengthwise Astm D638
11000 psi
Specifications Thickness
0.500 in
Specifications Tolerance
± 0.024 in
Specifications Weight
3.71 lb/ft²
