NEMA LE Linen Phenolic Rod - Ground from Sheet - Natural
NEMA LE Linen Phenolic Rod - Ground from Sheet - Natural
SKU:SHA-198fc5
High-density NEMA LE Linen Phenolic Rod with exceptional machinability and moisture resistance for versatile applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NEMA LE Linen Phenolic Rod - Ground from Sheet - Natural
$49.99
Quantity: 1
Claim Your Seller Account
NEMA LE Linen Phenolic Rod - Ground from Sheet - Natural
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

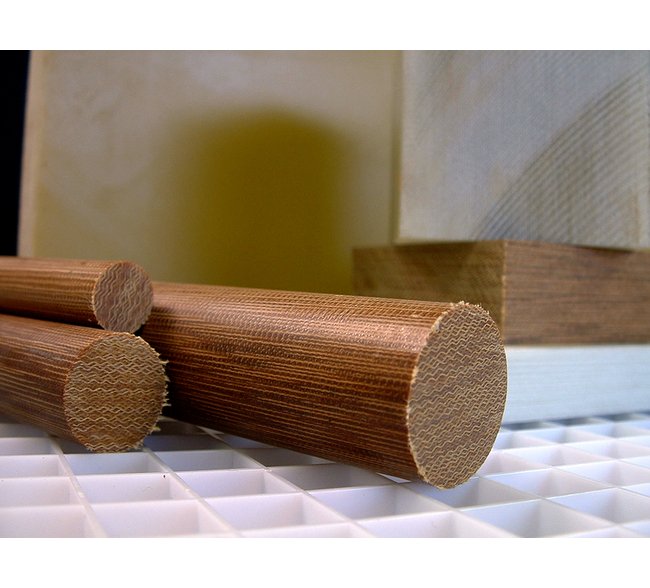

The NEMA LE Linen Phenolic Rod, ground from sheet material, is meticulously crafted using heat and pressure on linen cloth impregnated with synthetic resins. This thermoset composite boasts exceptional physical strength, resiliency, and superior electrical properties, making it ideal for diverse mechanical and electrical applications. With its high-density linen fabric and moisture resistance, this rod offers outstanding machinability and durability, perfect for components in high-humidity environments.
Product Specifications
Specifications Coefficient Of Thermal Expansion Crosswise
1.06 x 10-5 in/in/ºF
Specifications Coefficient Of Thermal Expansion Lengthwise
1.0 x 10-5 in/in/ºF
Specifications Compressive Strength
37000 psi
Specifications Density Astm D792
0.048 g/cm³
Specifications Dielectric Strength Short Time 0125 Astm D149
625 V/mil
Specifications Flammability Rating Ul 94
HB
Specifications Flexural Modulus Crosswise Astm D790
1200000 psi
Specifications Flexural Modulus Lengthwise Astm D790
1600000 psi
Specifications Flexural Strength Crosswise Astm D790
16000 psi
Specifications Flexural Strength Lengthwise Astm D790
22000 psi
Specifications Hardness Rockwell Astm D785
M100
Specifications Izod Impact Strength Notched Crosswise Astm D256
1.10 ft·lb/in
Specifications Izod Impact Strength Notched Lengthwise Astm D256
1.35 ft·lb/in
Specifications Length
4 ft
Specifications Maximum Operating Temperature
285 ºF
Specifications Tensile Strength Crosswise Astm D638
9000 psi
Specifications Tensile Strength Lengthwise Astm D638
13000 psi
Specifications Tolerance
± 0.003 in
